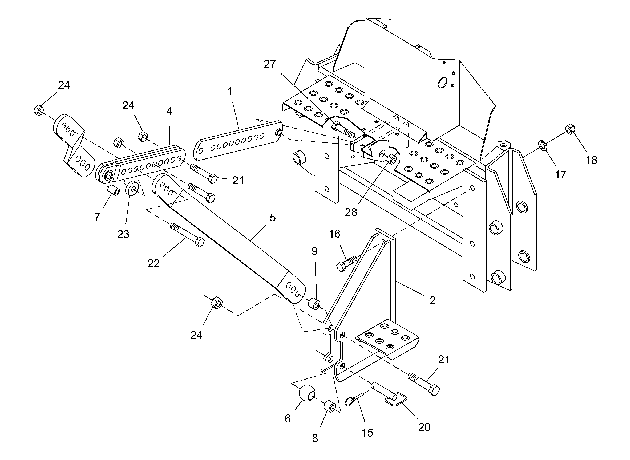

Woods Woods BH9000 Backhoe Attachment: 3-Point Mounting Kit (1005735) Assembly

1

1005726

Top link

product not available CALL FOR AVAILABILITY

$161.10

2

1005730

WA LOWER BRACKET RT

$269.59

3

1005731

WA LOWER BRACKET LT

$269.59

4

37670

WA 9000 UPPER LINK

$329.90

5

37679RP

LNKOFS .75 X 3 X32.23X12.95

$296.56

6

1005733

Ball hitch, 2.19 dia.

product not available CALL FOR AVAILABILITY

$146.41

7

30067

SLV .765 X 1.000 X 1.69

$7.38

8

3253

SLV, .88 X 1.10 X1.75

$22.80

9

38696

SLV .88 X 1.25 X 1.06

$10.05

15

62043

1/4 X 1-3/4 KLIK PIN

$2.52

16

13759

BOLT, HEX 3/4 NC X 2-1/4 GR5

$3.91

17

2522

WASHER, LOCK 3/4

$0.99

18

1450

NUT, HEX 3/4 NC

$2.13

20

37487

PIN, HITCH .88 X 3.00

$26.56

21

34157

HHCS 7/8 NC X 3-1/2 GR5

$8.37

22

34163

HHCS 7/8 NC X 5 GR5

$9.97

23

11073

WSHR 7/8 X 2 X 3/8 FLT

$12.92

24

34194

NUT LOCK 7/8 NC

$5.23

27

34278

BOLT, HEX 1 NC X 5.0 GR5 ZP

$12.43

28

34279

NUT, LOCK 1 NC

$8.52



1005735

3-Point Mounting Kit

product not available CALL FOR AVAILABILITY

$0.00
