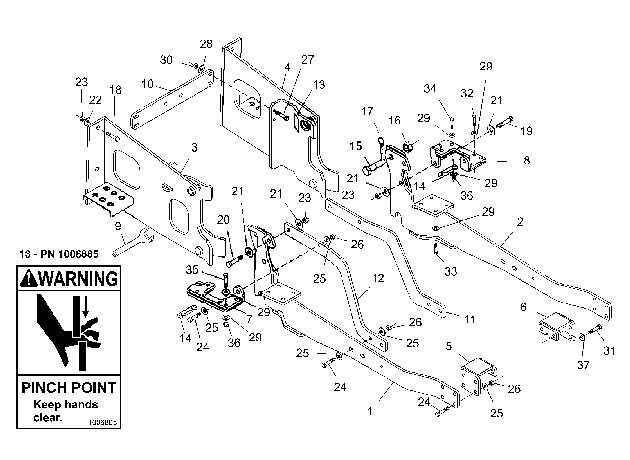

Woods Woods BH9000 Backhoe Attachment: 4-Point Sub-Frame Mounting Kit 1008547 Assembly

#
Part #
Item
Price
Qty
Add
1
1008548
WA RT TRACTOR LINK

product not available CALL FOR AVAILABILITY

$252.70
2
1008549
WA LT TRACTOR LINK

product not available CALL FOR AVAILABILITY

$252.70
3
1008594
WA RT BH LINK 9000

product not available CALL FOR AVAILABILITY

$331.70
4
1008595
WA LT BH LINK 9000

product not available CALL FOR AVAILABILITY

$331.70
5
1009466
WA LT MNT FRNT

product not available CALL FOR AVAILABILITY

$117.08
6
1009467
WA RT MNT FRNT

product not available CALL FOR AVAILABILITY

$117.08
7
1009552
WA RT TRACTOR ROPS ATTCH

product not available CALL FOR AVAILABILITY

$60.80
8
1009553
WA LT TRACTOR ROPS ATTCH

product not available CALL FOR AVAILABILITY

$60.80
9
1006883RP
WRENCH 1-1/2 OPEN END

product not available CALL FOR AVAILABILITY

$53.63
10
1009465
BH LINK 9000

product not available CALL FOR AVAILABILITY

$28.38
11
1009550
BNT LINK

product not available CALL FOR AVAILABILITY

$40.48
12
1009551
BNT LINK

product not available CALL FOR AVAILABILITY

$40.48
13
1006885
DCL WRNG PINCH POINT
$0.02
14
1009574
ROPS SPACER LUG

product not available CALL FOR AVAILABILITY

$11.04
15
1006860
HHCS 1 UNC X 4 GR5 ZP DRL
$18.33
16
1006861
NUT, HEX SLOTTED 1-8 UNC
$3.23
17
62043
1/4 X 1-3/4 KLIK PIN
$2.52
19
30068
BOLT, HEX 3/4 NC X 2-1/2 GR5 Z
$5.40
20
13759
BOLT, HEX 3/4 NC X 2-1/4 GR5
$3.91
21
1006371
WASHER, 3/4 FLAT EXTRA THK HRD
$13.03
22
57798
WASHER, 3/4 SAE FLAT HRDN
$2.52
23
1450
NUT, HEX 3/4 NC
$2.13
24
902
BOLT, HEX 5/8 NC X 2 GR5 ZP
$3.31
25
57817
WASHER, 5/8 SAE FLAT HRDN
$0.58
26
230
NUT, HEX, 5/8 NC PLATD
$1.72
27
24576
HHCS 1/2 NC X 1-3/4 GR5 ZP
$2.52
28
57816
WASHER, FLAT, 1/2 STD HRDN BL
$1.44
29
57811
WSHR 1/2 FLAT EXTRA THK HRDN
$1.07
30
1093
NUT, HEX HEAVY 1/2 NC ZP
$1.54
31
33125
HHCS M14-2.0P X 50MM CL8.8
$3.44
32
58517
M12 x 1.75P x 65 mm Hex Head Cap Screw 10.9 (See note 5)

product not available CALL FOR AVAILABILITY

$3.25
33
58515
HHCS, M12-1.75P X 45MM CL10.9Z
$4.23
34
66354
M12 x 1.75P x 80 mm Hex Head Cap Screw 8.8 (See note 3)

product not available CALL FOR AVAILABILITY

$1.89
35
62581
HHCS M12-1.75P X 60MM
$4.43
36
307813
NUT HEX M12 X 1.75
$4.58
37
46070
WSHR HRDN 9/16M14.594X1.25X.19
$4.98

1008547
4-Point Sub-Frame Mounting Kit

product not available CALL FOR AVAILABILITY

$0.00
