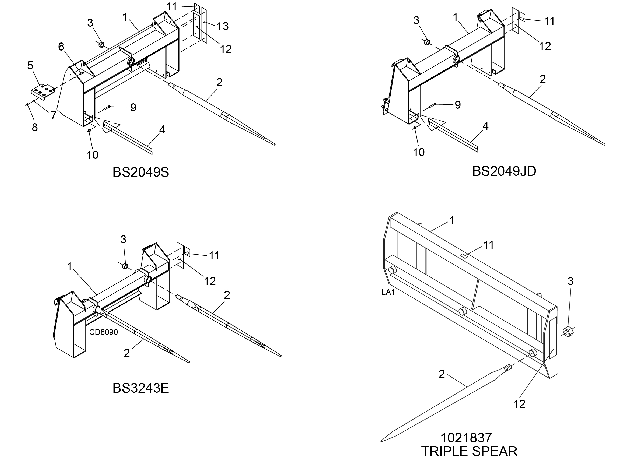

Woods Woods BS2049S Skid Steer BS2049S PARTS LIST Assembly

#
Part #
Item
Price
Qty
Add
2
1033240
50 mm Bale Spear with Nut

product not available CALL FOR AVAILABILITY

$222.10
3
1032633
NUT M28 X 1.50P

product not available CALL FOR AVAILABILITY

$8.05
4
1009273RP
TOOTH, BALE
$143.77
5
1019880
Step kit, PF1846S (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
6
6250
HHCS, 5/16 NC X 1-1/4 GR5 ZP
$1.44
7
2472
WASHER, LOCK 5/16
$1.19
8
4529
NUT, HEX 5/16 NC
$2.13
9
W300157
HHCS 3/8 NC X 2-1/4 GR5 ZP
$1.63
10
14350
NUT, LOCK FLANGE 3/8 NC
$1.72
11
1033030
Decal, Warning, Bale Spear Max Load

product not available CALL FOR AVAILABILITY

$2.30
12
1033032
DCL, WRNG, BALE SPEAR SAFETY
$0.02
13
1022032
DCL, WRNG, SKID STEER SAFETY
$0.02
