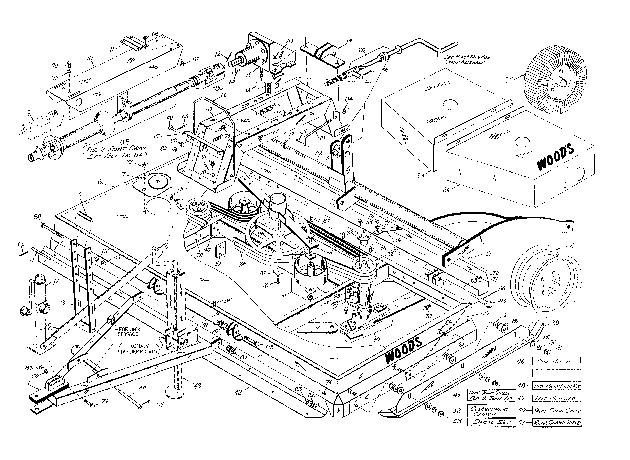

Woods Woods C80 Multi-Spindle Cutter Main Assembly

#
Part #
Item
Price
Qty
Add
1
7023
Tongue

product not available CALL FOR AVAILABILITY

$0.00
2
406RP
D80 ETC COMPRSN MBR

product not available CALL FOR AVAILABILITY

$96.94
3
7030
H FRM
$115.09
4
W404
PIN, CLV 1/2 X 5-3/4 HT
$18.64
5
7035
PIPE, 1/2 SCHEDULE 40 X 3.56
$17.39
6
7390
Frame only

product not available CALL FOR AVAILABILITY

$0.00
7
3444RP
ACCESS HOLE COVER
$22.22
8A
2555
Front 1/2 of 2 joint drive (See note 7)

product not available CALL FOR AVAILABILITY

$0.00
8B
7404
DRV ASY - FSH FT 35NX18.5X26.9
$898.11
8C
7242
Rear section of 2 & 3 joint drive (See note 8)

product not available CALL FOR AVAILABILITY

$0.00
9
411
Front drive shaft shield

product not available CALL FOR AVAILABILITY

$0.00
10
413
080ETC REAR DR SHFT SHLD

product not available CALL FOR AVAILABILITY

$378.40
10
7032
DR SHFT SHLD

product not available CALL FOR AVAILABILITY

$140.10
11
6747
SHLD STRAP

product not available CALL FOR AVAILABILITY

$24.26
12
1426
1/4 x 3 inch Cotter pin

product not available CALL FOR AVAILABILITY

$0.00
13
607RP
3/8 X 3/8 X 2-3/8 KEY

product not available CALL FOR AVAILABILITY

$3.60
13
1036666RP
KEY, 3/8 X 3/8 X 2
$8.36
15
200F
Gear box (See note 11)

product not available CALL FOR AVAILABILITY

$0.00
16
4575
Shield support (With straight legs) (See note 9)

product not available CALL FOR AVAILABILITY

$0.00
17
7033RP
COMPRSN MBR BRKT

product not available CALL FOR AVAILABILITY

$139.21
18
7391
Gear box stand

product not available CALL FOR AVAILABILITY

$0.00
19
419
SPR/EXT0.88 .15 4.1 107
$20.19
20
7026
Manual height adjustment complete (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
22
9310
Spring-loaded wheel yoke complete

product not available CALL FOR AVAILABILITY

$0.00
22
236
Adjustment bolt

product not available CALL FOR AVAILABILITY

$0.00
22
W7388
WHEEL YOKE, D80 ETC

product not available CALL FOR AVAILABILITY

$494.19
22
3381
Variable spacing wheel yoke

product not available CALL FOR AVAILABILITY

$0.00
23
W12162
C80ETC RIGHT V BELT SHLD
$157.57
24
W12163
C80 ETC LEFT V BELT SHLD
$157.57
25
1729
6.00 x 9 Notat Tire & wheel

product not available CALL FOR AVAILABILITY

$0.00
25
4675
WHL, 400X8 LAMINATED TIRE
$247.93
26
4269
14 inch Wheel, hub & axle

product not available CALL FOR AVAILABILITY

$0.00
27
7190
C80 REAR SHIELD
$163.94
28
1563
C80 C080 C114SKID W/HDWR
$226.35
29
2128
C80 ETC ANTIWNDRO BFL
$159.92
30
4910
CROSSBAR - HOUSING ASY 80
$855.00
31
5586
3BELT IDLR ASSEM 61 ETC
$226.79
32
10578RP
C80 ETC 3 TB 7.5 SHEAVE
$135.01
32
1934RP
3 TB 6.0 SHEAVE
$194.34
33
1482
BSHG P1 1-1/4 STRT BORE
$56.59
34
467
REAR SHIELD BRACE
$57.56
34
W10617
ldler arm assembly

product not available CALL FOR AVAILABILITY

$0.00
36
10575RP
SHEAVE, C80 ETC 3 SB 185

product not available CALL FOR AVAILABILITY

$196.70
36
214
Sheave

product not available CALL FOR AVAILABILITY

$0.00
37
606
LUG 1/4 X 1-1/2 X 2

product not available CALL FOR AVAILABILITY

$81.98
38
222
W95 SET OF 3V-BLTS C80114
$199.18
40
29038RP
C80 ETC SPINDLE SUPP PLT
$90.98
42
464
C80 ETC FRONT SHIELD

product not available CALL FOR AVAILABILITY

$129.79
43
7400
7.4 Offset overrunning clutch complete

product not available CALL FOR AVAILABILITY

$0.00
44
405
PIN CLV 5/8 X 6-3/4
$69.90
45
1040406
SHIELD KIT, PLASTIC
$164.37
46
2209
Disc hitch (See note 34)

product not available CALL FOR AVAILABILITY

$0.00
47
23790
JACK, PARKING SWIVEL 2000LBS
$172.80
48
24206
Complete Cylinder

product not available CALL FOR AVAILABILITY

$0.00
48
4786
Pivot link kit (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
49
1092
Leaf mulcher complete

product not available CALL FOR AVAILABILITY

$0.00
51
3775
Rear chain shld (See note 18)

product not available CALL FOR AVAILABILITY

$0.00
52
7950
Overrunning clutch

product not available CALL FOR AVAILABILITY

$0.00
53
31521
DCL SET SFTY SINGL/MULT
$208.53
54
11390
Wheel yoke bracket assembly

product not available CALL FOR AVAILABILITY

$0.00
65
1256
3/16 X 1, COTTER PIN
$1.19
66
1285
PIN, COTTER 1/4 X 1-1/2
$1.44
67
1282
SCREW, ROUND HEAD SLOTTED 1/4N
$0.67
68
6128
1/4 NC Lock nut (See note 30)

product not available CALL FOR AVAILABILITY

$0.00
69
5295
5/16 NC x 1 inch Hex head cap screw (See note 9)

product not available CALL FOR AVAILABILITY

$0.00
70
839
BOLT, HEX 3/8 NC X 1 GR5 ZP
$1.54
71
838
WASHER, LOCK, 3/8 ZP
$1.44
72
835
NUT, HEX 3/8 NC ZP
$1.72
73
1287
NUT WING 3/8 NC
$1.72
74
25475
BOLT, HEX 1/2 NC X 1 GR5 ZP FU
$2.13
75
745
REPL BY 1 6100

product not available CALL FOR AVAILABILITY

$0.01
76
1262RP
HHCS 1/2 NC X 1-1/4 DRL HD

product not available CALL FOR AVAILABILITY

$22.89
77
3379
BOLT, HEX 1/2 NC X 1-1/2 GR5 Z
$2.93
78
3452
HHCS 1/2 NF X 1-1/2 HT
$12.05
79
24576
HHCS 1/2 NC X 1-3/4 GR5 ZP
$2.52
80
1738
1/2 NC x 5-1/2 Hex head cap screw (See note 46)

product not available CALL FOR AVAILABILITY

$0.00
81
409
PIN, CLEVIS 1/2 X 2
$6.75
82
855
WASHER, LOCK, 1/2 ZP
$1.44
83
1093
NUT, HEX HEAVY 1/2 NC ZP
$1.54
84
6241
NUT, LOCK NYLOC 1/2 NC
$1.67
85
614
5/8 NC x 1-3/4 Hex head cap screw (See note 35)

product not available CALL FOR AVAILABILITY

$0.00
86
2855
BOLT, CARRIAGE 5/8 NC X 2
$3.13
87
6238
5/8 NC x 2-1/4 Hex head cap screw (See note 23)

product not available CALL FOR AVAILABILITY

$0.00
88
23141
BOLT, HEX 5/8 NC X 3-1/2 HT
$3.23
89
692
WASHER, FLAT, 5/8 STD ZP
$1.72
90
1286
WASHER, LOCK, HEAVY ZP
$1.72
91
230
NUT, HEX, 5/8 NC PLATD
$1.72
92
2864
WASHER, FLAT, 3/4, ZINC-PLT ST
$0.32
93
W8341
PIN CLV 1 X 2-1/2 HT
$41.46
