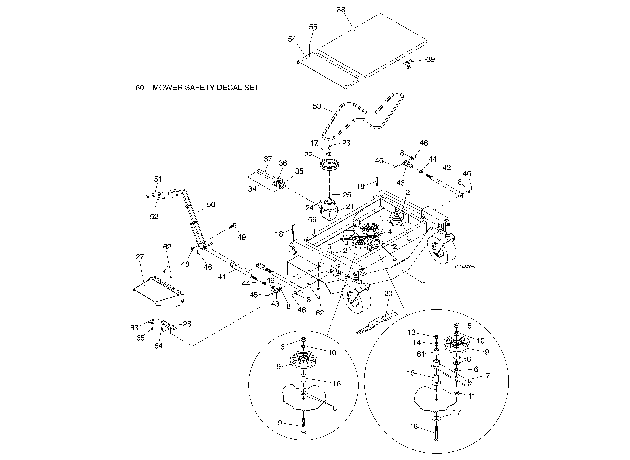

44 inch Mower Deck Assembly

#
Part #
Item
Price
Qty
Add
1
71617
Deck weldment

product not available CALL FOR AVAILABILITY

$0.00
2
W71995
SHEAVE B 1G 3.50X25MM BORE
$106.55
3
33647
PIPE 1 SCH 40 X 0.75
$3.13
4
70107
SPR/EXT .75 .105 4.9 /MR
$12.62
5
72244
J-BOLT .375-16 X 3.5
$10.05
6
1093
NUT, HEX HEAVY 1/2 NC ZP
$1.54
7
W71431
ASSY SERVICE IDLER ARM DECK
$108.89
8
3598
WASHER, FLAT, 1/2 SAE ZP
$1.90
9
70018
IDLER PLASTIC 4.75 OD X .50 ID
$41.43
10
855
WASHER, LOCK, 1/2 ZP
$1.44
11
10284
BOLT, CARRIAGE 1/2 NC X 2
$2.52
13
W70069
NUT, WHIZ, 3/8 NC FLNG /MR
$2.13
14
565
WASHER, FLAT 3/8
$1.72
15
W71430
BEARING-PEDESTAL
$10.96
16
W71528
SPACER-IDLER /MR
$10.93
17
70005
WSHR CUPPED
$12.90
18
7747
3/8 NC x 3 HHCS GR5 (Standard hardware, obtain locally)

product not available CALL FOR AVAILABILITY

$0.00
19
3489
BOLT, HEX 1/2 NC X 3 GR5 ZP
$2.74
20
70062
Blade, 15 inch High lift (See note 12)

product not available CALL FOR AVAILABILITY

$0.00
21
70114
GEARBOX-RT ANGLE CCW
$366.20
22
W71622
SHEAVE B 1G 5.0X.875 /MR

product not available CALL FOR AVAILABILITY

$145.99
23
64518
HHCS 3/8 NF X 1 GR5
$1.72
24
62233
KEY WOODRUFF .187 X .75
$2.13
25
64051
WOODRUFF KEY 5/32 X 5/8
$4.40
27
72873
PLASTIC CHUTE
$71.37
28
W73192
MOUNTING HINGE
$108.71
30
4115
SPRING PIN, 3/16 X 1-1/8
$1.19
31
66510
SPR/CMP0.66 .06 2.5 8
$8.99
32
66836
PIN, BENT .5 X 1.96
$39.63
34
70078
SHAFT ASY - NEAPCO /MR

product not available CALL FOR AVAILABILITY

$262.65
35
W70058
YOKE - 6 .875 N /MR
$54.00
36
65689
0675 U-JOINT REPAIR KIT
$40.96
37
70082
YOKE-SHFT-.75X.88X7.4/MR

product not available CALL FOR AVAILABILITY

$110.78
38
71615
Belt shield assembly

product not available CALL FOR AVAILABILITY

$71.06
39
70002
LATCH-RUBBER DRAW
$39.93
41
W72438
LIFT LEVER ROD ASY
$206.75
42
W72431
DECK LIFT ROD 44

product not available CALL FOR AVAILABILITY

$112.89
43
W72440
CLEVIS
$78.73
44
66746
NUT HEX 5/8 NF RH PLATED

product not available CALL FOR AVAILABILITY

$1.30
45
W72823
PIN CLV .5 X 1.62
$7.49
46
71630
1/8 X 3/4 COTTER PIN /MR
$1.44
47
63528
1/2 x 1-1/4 Clevis pin

product not available CALL FOR AVAILABILITY

$1.48
48
765
NUT, LOCK, 1/2 NC ZP
$3.40
49
3699
BOLT, HEX 1/2 NC X 2 GR5
$2.31
50
W73201
WELDMENT DECK LIFT HANDLE
$567.16
51
W70053
GRIP-HANDLE.25X1.25X5/MR
$13.98
52
W70054
GRIP-HANDLE .31IDX3.5
$7.99
53
W71616
BELT L587 /MR
$74.34
54
W71614
SHIELD-BELT RT /MR

product not available CALL FOR AVAILABILITY

$48.59
55
W71206
SCREW 1/4-20 HEX FLANGE /MR
$3.54
56
W72474
NUT SPRING 1/4 NC U-TAPPED
$2.52
60
74071
DECAL SET D5221T/D6121T
$71.91
61
W71722
BSHG-OILITE.751X.878X.500
$3.75
62
W70065
NUT WHIZ 1/4 NC
$1.19
63
W73211
WSHR 1/4 STD FLAT YD
$1.35
64
W73212
BOLT CRG 1/4NC X 1 GR5 ZC
$2.31
65
W73213
HHCS 1/4 NC X 1.0 GR5 YD
$1.35

70014
Medium lift blade

product not available CALL FOR AVAILABILITY

$0.00
