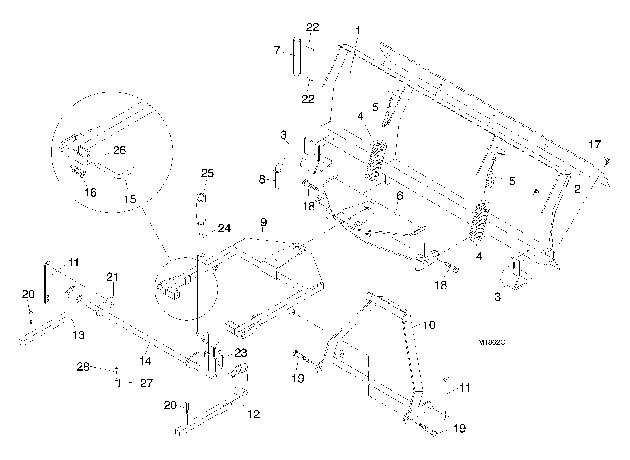

Dozer Assembly

#
Part #
Item
Price
Qty
Add
1
72287
60 inch Moldboard

product not available CALL FOR AVAILABILITY

$351.00
1
70426
MOLDBOARD - 48 /MR

product not available CALL FOR AVAILABILITY

$579.36
2
72292
BLADE - 60 /MR
$63.90
2
70427
48 inch Blade

product not available CALL FOR AVAILABILITY

$105.93
3
70428
SKID - DOZER /MR

product not available CALL FOR AVAILABILITY

$97.73
4
70429
SPR/EXT1.88 .25 8 /MR

product not available CALL FOR AVAILABILITY

$44.92
5
5762
BOLT EYE 3/8 NC X 3-1/4 OPEN
$31.06
6
70431
Dozer pivot mount

product not available CALL FOR AVAILABILITY

$505.10
7
72879
1 x 6 Clevis pin

product not available CALL FOR AVAILABILITY

$14.76
8
70433
Blade angle lock pin

product not available CALL FOR AVAILABILITY

$17.88
9
72872
DOZER MOUNT

product not available CALL FOR AVAILABILITY

$447.87
10
W70435
LIFT - FOOT /MR

product not available CALL FOR AVAILABILITY

$119.69
11
70436
Linkage strap

product not available CALL FOR AVAILABILITY

$6.64
12
12020272
LEVER MOUNT

product not available CALL FOR AVAILABILITY

$86.40
13
70438
MOUNT - LIFT LEFT /MR
$176.46
14
W70727
SNOWTHROWER LIFT

product not available CALL FOR AVAILABILITY

$288.29
15
66836
PIN, BENT .5 X 1.96
$39.63
16
66510
SPR/CMP0.66 .06 2.5 8
$8.99
17
16148
BOLT, CARRIAGE, 5/16 NC X 3/4
$1.15
18
25474
HHCS 1/2 NC X 2-1/4 GR5 ZP
$2.31
19
3489
BOLT, HEX 1/2 NC X 3 GR5 ZP
$2.74
20
22348
HHCS, 1/4NC X 2 GR5
$0.38
21
64291
COTTER PIN 5/32 X 1
$1.54
22
1266
PIN, COTTER 3/16 X 1-1/2
$1.44
23
70772
Lever guide

product not available CALL FOR AVAILABILITY

$813.05
24
W70766
PUSH ROD GRIP
$210.02
25
W07530700
HANDLE GRIP - 1.00 DIA

product not available CALL FOR AVAILABILITY

$0.00
26
4115
SPRING PIN, 3/16 X 1-1/8
$1.19
27
73120
SLV THDD 5/16 NC X 1.00 X 1.00

product not available CALL FOR AVAILABILITY

$46.76
28
5237
5/16 NC x 1/2 Hex head cap screw GR5 (See note 2)

product not available CALL FOR AVAILABILITY

$0.00
29
72792
Step, short (See note 10)

product not available CALL FOR AVAILABILITY

$158.90

72877
DB480 Dozer assembly complete (See note 1)

product not available CALL FOR AVAILABILITY

$0.00

72878
DB600 Dozer assembly complete (See note 2)

product not available CALL FOR AVAILABILITY

$0.00
