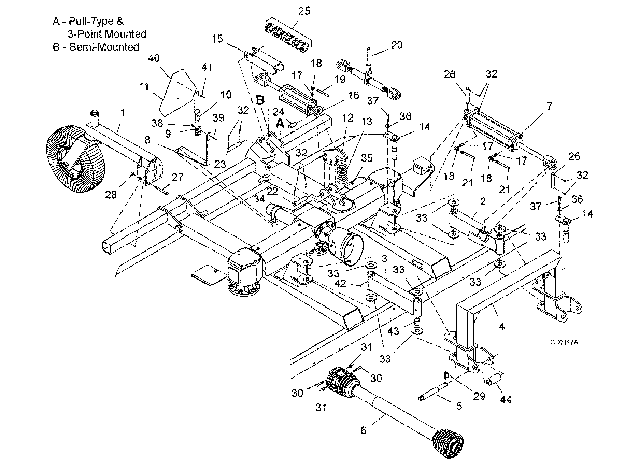

Assembly - DSO1260Q Assembly

2

1021783RP

WA, OFFSET ARM, LH

$594.22

3

1021784RP

WA, OFFSET ARM, LH

$573.16

4

1021775

Hitch assembly

product not available CALL FOR AVAILABILITY

$0.00

5

39064

LOWER, HITCH PIN

$49.50

6

57425

DRV ASY CMPL 2500 41.7 X 58.5

$1,624.88

7

1022208

2-1/2 X 16 DA HYD CYL

$395.33

8

1021369

SMV Mounting bracket

product not available CALL FOR AVAILABILITY

$23.98

9

62484

SOCKET, SMV EMBLEM

$8.77

10

1004251

EMBLEM, SMV BRACKET

$13.13

11

24611

EMBLEM, SMV

$49.54

12

1009245RP

WA SPRING ARM

$133.20

13

13316RP

SPR/CMP3.00 .50 6.2

$39.10

14

1021398

FLAG PIN 1.50 X 8.02

$61.51

15

1004814RP

TRANSPORT LOCK-UP

$156.43

16

597273

CYLINDER, 3.5 X 1.25 X 8.0 NPT

$150.86

17

W11893

ADAPTER, 1/4 NPTF 1/2 NPTM

$2.52

18

10290

FITTING, ELBOW 1/4 X X1/4 W/1/

$6.75

19

8669

HOSE, 1/4 X 1/4 X 156

$104.20

20

S010541OE

OEM, BLACK POWDER ACME JACK

$99.11

22

8346

PIN, HDLS 1.00 X 4.58

$20.35

23

8347

PIN, HDLS 1.00 X 5.08

$21.90

25

24098

1-1/4CYL STRK CN

$40.68

26

1631

PIN, HDLS 1.00 X 2.72

$16.31

27

378

5/8 NC x 5 Hex head cap screw (See note 25)

product not available CALL FOR AVAILABILITY

$0.00

28

19025

NUT, HFN 5/8 NC, LOCK

$3.31

29

35124

7/16 x 2 Klik pin

product not available CALL FOR AVAILABILITY

$0.01

30

3489

BOLT, HEX 1/2 NC X 3 GR5 ZP

$2.74

31

765

NUT, LOCK, 1/2 NC ZP

$3.40

32

1285

PIN, COTTER 1/4 X 1-1/2

$1.44

33

2370

WASHER, SPECIAL, 1.62 X 3 X .

$2.52

34

23479

BOLT, HEX 1/2 NC X 5 GR5 ZP

$3.91

35

11900

NUT, LOCK FLANGE 1/2 NC

$1.90

36

854

WASHER, FLAT, 1/2 STD ZP

$1.44

37

6100

BOLT, HEX 1/2 NC X 1-1/4 GR5

$2.52

38

16148

BOLT, CARRIAGE, 5/16 NC X 3/4

$1.15

39

14139

NUT, LOCK FLANGE 5/16 NC

$3.13

40

1282

SCREW, ROUND HEAD SLOTTED 1/4N

$0.67

41

5288

NUT, HEX 1/4 NC

$1.54

42

12296

FITTING, GREASE 1/4-28 X 15/32

$1.54

43

1012615

BRG - 1.50 X 1.67 X 1.50

$19.77

44

1022238RP

SLV 1.63 X 2.25 X 11.0

product not available CALL FOR AVAILABILITY

$20.46
