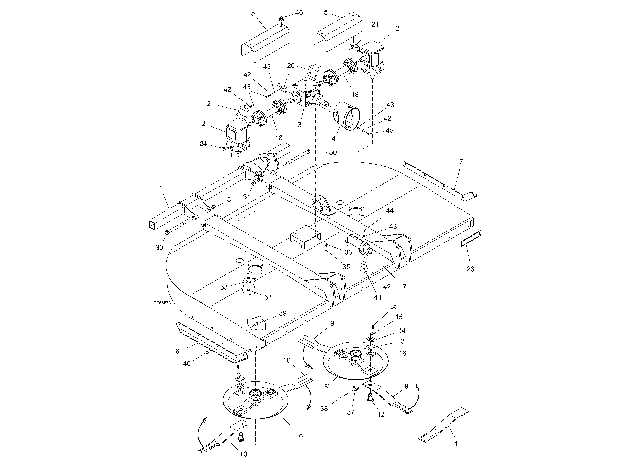

Woods Woods DS96 Rotary Cutter Multi-Spindle Cutter MAIN FRAME ASSEMBLY (DS96)

2

617158RP

GEARBOX, REPAIR CCW 1:1.5 W/BA

$631.88

3

1008192

GEARBOX REPAIR 1:1.5 SPLITTER

$994.75

4

1002048

SHIELD, CLUTCH 100, 143 MM BC

$68.90

5

1013377RP

SHIELD, DS96

$100.69

6

1013378RP

DS96 RT SKID

$154.71

7

1013379RP

DS96 LT SKID

$154.71

8

1013370RP

WA ,CROSSBAR DS96

$607.54

9

11769KT

KIT, BLADE, 11769 STD

$173.24

10

11768KT

KIT, BLADE, 11768 STD

$173.24

11

11886KT

KIT, BLADE, 11886 STD

$184.48

12

1009098

PIN, BLADE PIN KIT

$44.35

13

13946RP

20 GA 1-1/2 BLD PIN SHIM

$3.74

14

32603

PLATE, KEYHOLE SPECIAL

$11.23

15

32604RP

BLADE PIN LOCK CLIP SPEC

$4.61

16

10520RP

18GA 1-1/2 BLD PIN SHIM

$6.98

17

1003828

MANUAL TUBE, 3.50 X 3.23 X 11.

$30.07

18

1019437

DRV ASY, DOUBLE FLEX 11.44

$390.42

20

1009203RP

SHIELD HOLD DOWN, INSIDE

$53.24

21

1009204RP

SHIELD HOLD DOWN, OUTSIDE

$80.56

22

1008194

DCL SET CMPL DS96/DS120

$156.81

23

1008195

DCL SET SFTY DS96/DS120

product not available CALL FOR AVAILABILITY

$139.73

24

1036796

DCL SET SFTY SPANISH DS96/120

$1,114.51

30

39141

HHCS, 1 NC X 12.0 GR5

$75.74

31

34279

NUT, LOCK 1 NC

$8.52

32

30068

BOLT, HEX 3/4 NC X 2-1/2 GR5 Z

$5.40

33

57798

WASHER, 3/4 SAE FLAT HRDN

$2.52

34

W302207

NUT, LOCK, FLANGE, 3/4 NC

$2.93

35

6100

BOLT, HEX 1/2 NC X 1-1/4 GR5

$2.52

36

855

WASHER, LOCK, 1/2 ZP

$1.44

37

W39323

NUT, CASTLE GRBX M30 X 2.0P

$24.61

39

11900

NUT, LOCK FLANGE 1/2 NC

$1.90

40

14406

BOLT, CARRIAGE 1/2 NC X 1

$1.54

41

4529

NUT, HEX 5/16 NC

$2.13

42

2472

WASHER, LOCK 5/16

$1.19

43

35155

WASHER, FLAT 5/16

$2.13

44

6250

HHCS, 5/16 NC X 1-1/4 GR5 ZP

$1.44

45

24801

BOLT, HEX M8-1.25P X 20MM

$1.72

46

66840

KNOB, 3 PRONG 3/8NC

$4.25
