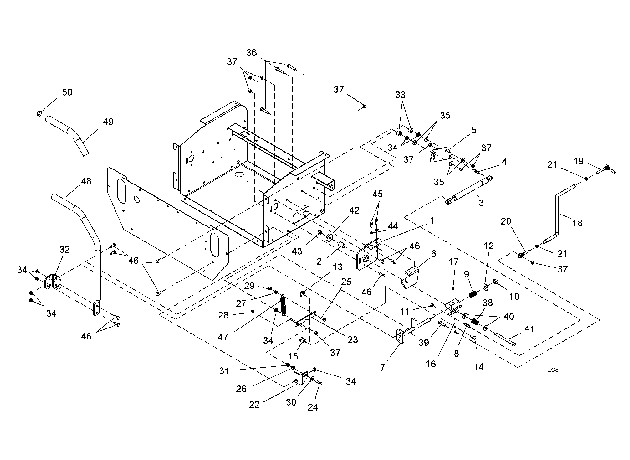

Left Control Handle Assembly

#
Part #
Item
Price
Qty
Add
1
582110
Left control pivot With bushing

product not available CALL FOR AVAILABILITY

$69.19
2
253059
Engagement bushing

product not available CALL FOR AVAILABILITY

$6.63
3
583415
Dampener

product not available CALL FOR AVAILABILITY

$91.52
5
583438
Dampener adjust plate

product not available CALL FOR AVAILABILITY

$14.04
6
583256
Left lever lock

product not available CALL FOR AVAILABILITY

$38.28
7
582084
Left neutral lock pivot

product not available CALL FOR AVAILABILITY

$16.32
8
823221
10 mm Ball stud

product not available CALL FOR AVAILABILITY

$3.77
10
104259
1/2-13 Nyloc Nut

product not available CALL FOR AVAILABILITY

$1.12
12
854
WASHER, FLAT, 1/2 STD ZP
$1.44
13
108509
3/4 E-ring

product not available CALL FOR AVAILABILITY

$1.49
15
823272
Bushing nut

product not available CALL FOR AVAILABILITY

$9.25
16
822075
Drive block With grease fitting

product not available CALL FOR AVAILABILITY

$21.84
17
111004
1/4-28 Grease fitting (See note 3)

product not available CALL FOR AVAILABILITY

$0.00
18
823108
Left drive rod

product not available CALL FOR AVAILABILITY

$54.56
19
423160
5/16 - 24 BALL STUD

product not available CALL FOR AVAILABILITY

$45.89
20
453082
5/16 ROD END (M)

product not available CALL FOR AVAILABILITY

$25.60
21
33654
NUT JAM 5/16 NF
$1.54
22
823348
Left arm bracket

product not available CALL FOR AVAILABILITY

$9.25
23
823344
Neutral arm

product not available CALL FOR AVAILABILITY

$11.16
25
100004
1/4-20 x 1 HHCS (See note 6)

product not available CALL FOR AVAILABILITY

$0.00
27
62521
1/4 NC Lock Nut Flange (See note 28)

product not available CALL FOR AVAILABILITY

$0.99
29
104255.W
1/4-20 Nyloc nut

product not available CALL FOR AVAILABILITY

$0.99
31
823016
Flange bushing

product not available CALL FOR AVAILABILITY

$2.43
32
523222
Control lever angle

product not available CALL FOR AVAILABILITY

$11.52
33
363113
Spacer

product not available CALL FOR AVAILABILITY

$6.25
34
14139
NUT, LOCK FLANGE 5/16 NC
$3.13
35
4378
WASHER, FLAT SAE 5/16
$0.78
36
24408
5/16 NC x 1-1/2 Hex Bolt GR5 (See note 17)

product not available CALL FOR AVAILABILITY

$0.00
37
104256
5/16-18 Nyloc nut

product not available CALL FOR AVAILABILITY

$0.99
38
363024
Compression spring

product not available CALL FOR AVAILABILITY

$2.57
39
6250
HHCS, 5/16 NC X 1-1/4 GR5 ZP
$1.44
40
565
WASHER, FLAT 3/8
$1.72
41
12915
3/8 NC x 4-1/2 Hex Head Cap Screw GR5

product not available CALL FOR AVAILABILITY

$0.00
42
373089
3/8 X 1/4 FLAT WASHER

product not available CALL FOR AVAILABILITY

$4.41
43
104257
3/8-16 Nyloc nut

product not available CALL FOR AVAILABILITY

$0.99
44
1985
WASHER, LOCK 1/4
$1.64
45
2457
BOLT, HEX, 1/4NC X 3/4, GR5
$1.19
46
6096
BOLT, HEX 5/16 NC X 3/4 GR5
$1.44
47
363117
Spring

product not available CALL FOR AVAILABILITY

$3.38
48
W522100
HANDLE ASY W/GRIP

product not available CALL FOR AVAILABILITY

$63.20
49
W523032
HANDLE GRIP

product not available CALL FOR AVAILABILITY

$13.77
50
W523033
HANDLE PLUG

product not available CALL FOR AVAILABILITY

$2.61
