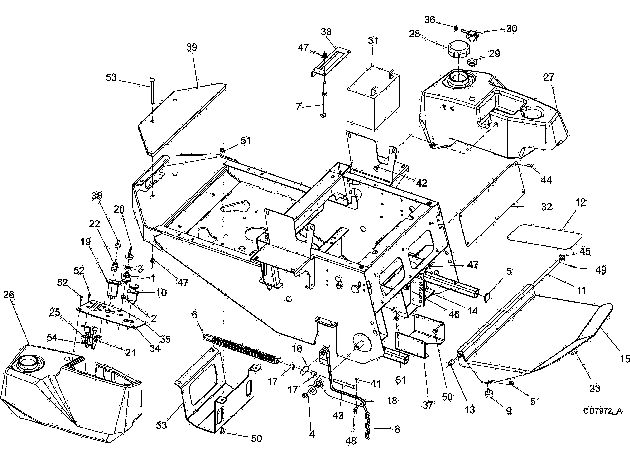

FZ22K FRAME ASSEMBLY

1

W01563700

KEY, SWITCH

$56.02

2

W06517400

NUT PANEL .562-24 FZ23B FZ28K

$5.74

3

W07517700

IGNITION CAP FZ23B FZ28K

$5.21

4

35139

RING RET .050 X .750 EXT

$1.72

5

70179

PLUG-1.25 SQ-PLSTC

$3.25

6

W71144

SPRING ASSEMBLY

$60.80

7

W71156

BOLT HOOK .375-16 X 6.00

$21.45

8

W71170

CHAIN-LIFT SNOWTHWR

$10.54

9

W71444

BUMPER, RUBBER 1.25 DIA X .75

$20.51

10

72262

TOGGLE 2P DT 2POSITION CLCH

$34.67

11

W72410

FOOT REST PIVOT ROD

$26.93

12

W72411

FOOT REST TREAD

$12.89

13

W73581

BUSHING, NYLON .5 X .62 X 1.0

$3.58

14

73827RP

BLANK ATTACHMENT BRACKET

$64.40

15

W73891

ASSEMBLY FOOT REST

product not available CALL FOR AVAILABILITY

$156.58

16

W73895

PIN WELDMENT TRANSFER

$21.87

17

W73896

SLEEVE WEIGHT TRANSFER

$4.73

18

W73898

ASSEMBLY TRACTION ARM

product not available CALL FOR AVAILABILITY

$75.10

19

W73902

HOUR, METER

$100.69

20

75196

KEY WITH CAP FZ23B, FZ28K SET

$25.49

21

75472

THROTTLE CABLE

$89.55

22

75520

SWITCH, TOGGLE DECK

$62.19

23

75546

GLIDE, FELT SELF ADHESIVE

product not available CALL FOR AVAILABILITY

$2.77

24

75553

BOOT, TOGGLE SWITCH

$13.55

25

78069

CHOKE CABLE F23

$64.63

26

78796RP

FUEL TANK, RH EPA

$323.68

27

78797RP

FUEL TANK, LH EPA

$316.09

28

78333

TETHERED GAS CAP

$33.69

29

78334

GROMMET, REMOTE VENT

$3.94

30

78335

REMOTE VENT 1/4 BARB

$33.87

32

78541RP

FRONT COVER

$33.61

33A

78546

SKID PLATE

product not available CALL FOR AVAILABILITY

$55.60

33B

78779RP

SKID PLATE

$70.98

34

78606RP

CONSOLE, FZ22K

$20.79

35

78607

DCL, INSTR, FZ22

product not available CALL FOR AVAILABILITY

$13.35

36

78610

HOSE CLAMP, DUAL WIRE, .50

$1.39

37

78632

GEARBOX SHIELD

product not available CALL FOR AVAILABILITY

$24.82

38

78717RP

BATTERY HOLD DOWN

$28.63

39

78718RP

WEIGHT, 16.6 LB

$70.38

40

11036

WSHR 3/4X1-1/2X18GA SHIM

$3.23

41

1326

Cotter pin .125 x .5 (See note 1)

product not available CALL FOR AVAILABILITY

$0.00

42

16231

5/16 x 1/2 Flange hex head cap screw (See note 6)

product not available CALL FOR AVAILABILITY

$1.26

43

24660

HHCS 3/8 NC X 3-1/2 GR5 FT

$3.75

44

301300

1/4 NC x 3/4 Truss head bolt (Standard hardware, obtain locally)

product not available CALL FOR AVAILABILITY

$0.99

45

3598

WASHER, FLAT, 1/2 SAE ZP

$1.90

46

62153

SCREW 3/8NC X 1 HX FLNG SRTD

$2.31

47

W70069

NUT, WHIZ, 3/8 NC FLNG /MR

$2.13

48

W70070

PIN CLV .375 X .75

$3.31

49

71630

1/8 X 3/4 COTTER PIN /MR

$1.44

50

71851

HHCS 5/16 NC X 3/4 FLANGE

$1.72

51

W73163

NUT WHIZ 5/16 NC FLNG YD

$1.54

52

73542

SCREW MCHN 10-24 X .50 WSHR HD

$1.90

53

90001708

BOLT CRG 3/8 NC X 4-1/2 GR5 ZP

product not available CALL FOR AVAILABILITY

$6.12

54

FA448

10-24 Nut With Nylon insert (See note 11)

product not available CALL FOR AVAILABILITY

$0.00
