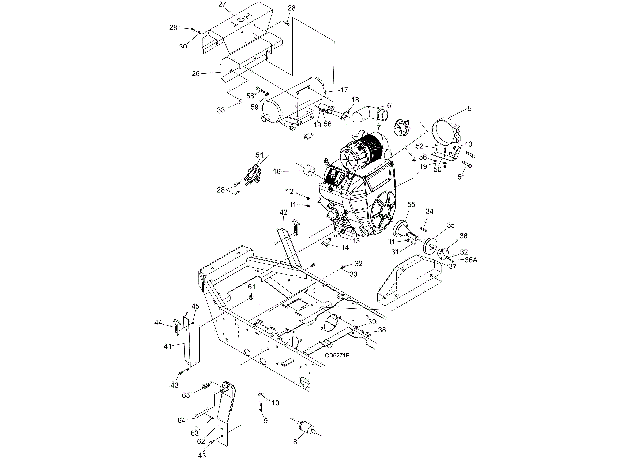

FZ28K ENGINE ASSEMBLY

#
Part #
Item
Price
Qty
Add
2
W72859
OIL FILTER, KAWASAKI
$34.96
3
75215
AIR FILTER SFTY ELEMENT
$72.79
4
W75212
AIR CLEANER H.D.
$233.01
5
75213
BRKT AIR CLEANER
$64.79
6
75385
Air intake hose

product not available CALL FOR AVAILABILITY

$55.47
7
62259
CLAMP HOSE
$4.43
8
71812
FLTR FUEL, CH18 KOHLR /MR
$18.97
9
4528
5/16 NC x 1-3/4 hex hd cap scr

product not available CALL FOR AVAILABILITY

$0.00
10
4378
WASHER, FLAT SAE 5/16
$0.78
11
2472
WASHER, LOCK 5/16
$1.19
12
4529
NUT, HEX 5/16 NC
$2.13
13
75366
ORING 16MM KAW ENG 28HP
$2.52
14
75325
DRAIN VALVE ASY, OIL KAW28HP
$26.19
16
75312
SLV, 1.135 X 1.500 X 1.25
$22.03
17
78800
MUFFLER, FZ28K
$318.72
18
75364
GASKET, MUFFLER KAWASAKI 28HP

product not available CALL FOR AVAILABILITY

$3.78
26
75468
SHIELD, MUFFLER (INNER)

product not available CALL FOR AVAILABILITY

$67.52
27
75467RP
SHIELD, MUFFLER OUTER
$116.97
28
64825
1/4 NC x 3/4 HHCS GR5 (See note 10)

product not available CALL FOR AVAILABILITY

$0.00
30
5336
WASHER, FLAT 1/4
$1.72
31
29751
HHCS M8-1.25 X 35MM
$2.04
32
1985
WASHER, LOCK 1/4
$1.64
33
W70065
NUT WHIZ 1/4 NC
$1.19
34
1004104
KEY 1/4 X 1/4 X 1-3/4
$1.72
35
75484
SHEAVE ENGINE 3.95 H DRIVE
$53.76
36
34440
BSHG H 1.0 STRT BR W/KY PI
$40.08
37
75514
WA BELT GUARD
$193.03
38
15042
HHCS 3/8 NC X 3/4 GR5 YD

product not available CALL FOR AVAILABILITY

$2.33
39
838
WASHER, LOCK, 3/8 ZP
$1.44
40
W73163
NUT WHIZ 5/16 NC FLNG YD
$1.54
41
73671RP
HOOD SUPPORT RH

product not available CALL FOR AVAILABILITY

$40.92
42
73672RP
HOOD SUPPORT LH

product not available CALL FOR AVAILABILITY

$25.69
43
839
BOLT, HEX 3/8 NC X 1 GR5 ZP
$1.54
44
W09079500
LATCH,RUBBER
$48.84
45
73542
SCREW MCHN 10-24 X .50 WSHR HD
$1.90
50
75388RP
BRACKET AIR CLEANER KAW
$58.94
54
75310
SOLENOID, STARTER FZ28K
$62.89
55
75311
SHAFT, STUB KAWASAKI 28HP

product not available CALL FOR AVAILABILITY

$191.48
57
W72474
NUT SPRING 1/4 NC U-TAPPED
$2.52
61
14350
NUT, LOCK FLANGE 3/8 NC
$1.72
62
78666RP
LUG ASSEMBLY
$76.71
63
4115
SPRING PIN, 3/16 X 1-1/8
$1.19
64
66836
PIN, BENT .5 X 1.96
$39.63
65
66510
SPR/CMP0.66 .06 2.5 8
$8.99
A
21536100
SPARK PLUG, KAWASAKI
$30.86

75214
AIR FILTER ELEMENT
$58.29
