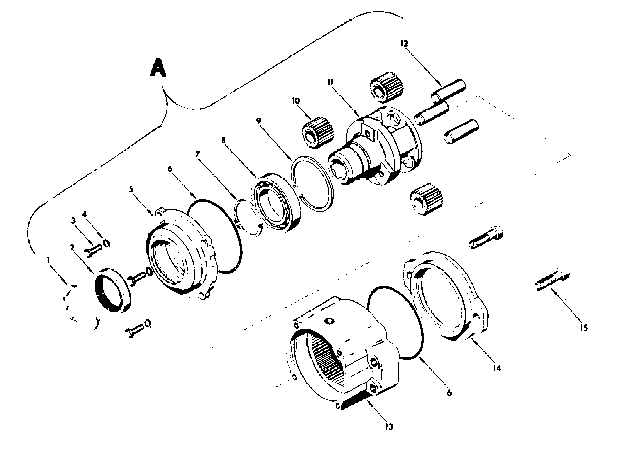

Woods Woods HS105-3 Ditchbank Ditchbank Mower Step-Up Box Assembly

#
Part #
Item
Price
Qty
Add
1
28454
RING RET 1/16 X 3
$10.56
2
28451
2-1/8 X 2-7/8 X 3/8 SEAL
$28.50
3
14562
BOLT, HEX 5/16 NC X 1 GR5
$1.72
4
28453
5/16 ID Shakeproof lock washer

product not available CALL FOR AVAILABILITY

$0.00
5
28461
FRONT PLATE 4 TO 1 GR BX
$265.72
6
28456
O-RING 4-3/4ID 3/32THK
$6.11
7
28458
RING SNAP 5/64 X 2-5/16 OD

product not available CALL FOR AVAILABILITY

$5.05
8
28463
2.16IDX3.54 OD BALL BRG

product not available CALL FOR AVAILABILITY

$113.48
9
28457
RING SNAP 7/64 X 3-9/16 ID

product not available CALL FOR AVAILABILITY

$35.01
10
28464
25T-16 DP Gear and Bushing assembly

product not available CALL FOR AVAILABILITY

$207.30
11
28459
CARRIER-PLUG ASY 4TO1 BX

product not available CALL FOR AVAILABILITY

$1,195.26
12
28452
3/4 x 2-7/8 Dowel

product not available CALL FOR AVAILABILITY

$34.54
13
28462
STEP UP BOX HOUSING

product not available CALL FOR AVAILABILITY

$648.80
14
W28460
ADAPTOR PLT 4 TO 1 BX

product not available CALL FOR AVAILABILITY

$143.30
15
24576
HHCS 1/2 NC X 1-3/4 GR5 ZP
$2.52
A
28498
1 TO 4 STEP-UP BOX ASY
$2,051.68
