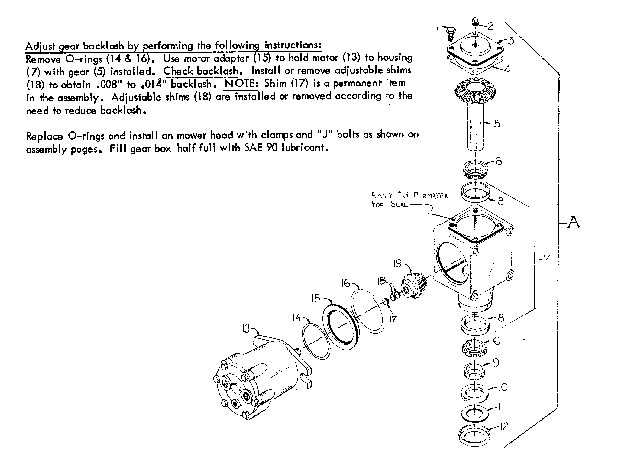

Woods Woods HS106-2 Ditchbank Ditchbank Mower Gear Box 1:1.76 Ratio Assembly

#
Part #
Item
Price
Qty
Add
1
1686
BOLT, HEX 3/8 NC X 3/4 GR5 ZP
$1.19
2
23057RP
1/2 IN PIPE PLUG W VENT
$29.12
3
23051RP
GEARBOX COVER, 72-1 ETC
$59.33
4
11442
114664-1/2 IDX5 GASKT
$6.73
5
26474RP
30T VERT GEAR - SHFT
$562.83
6
11114
BRG-CONE LM501349
$30.76
7
11062
72-1 ETC V GR HSG W/CUPS
$397.22
8
11115
BRG-CUP LM501310
$15.70
9
11054
SLV 1-5/8 X 2-1/8 X 5/8
$14.92
10
W11010
SEAL, 2.12 X 3.00 X .38
$10.67
11
25367
WSHR 1-5/8ID 2-3/4OD 10GATHICK
$4.58
11
11056
WSHR 1-5/8ID 3OD 10GATHICK
$10.05
12
25365
GEAR BOX WASHER RETAINER
$17.50
14
W27308
O-RING 4.0OD 1/8THK
$3.84
15
27427
HS105 ETC MOTR ADAPTER
$186.99
16
W27998
O-RING 5-1/4OD 1/8 RD THK
$7.04
17
28513
WSHR .344ID X .656OD X .065 HT
$33.79
18
27426
.015 X 23/32 RD SLUG
$9.22
19
27425
HS105ETC 17T GR SPLN ASY
$460.83
A
28448
1 TO 1.76 REPAIR GEAR BX
$1,106.56
