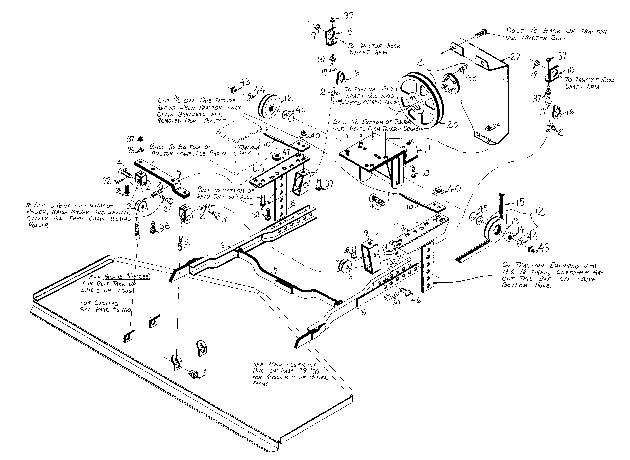

Woods Woods L306K260-1 Kubota L260 Undermount/Mid-mount Rotary Cutter Mounting Frame Assembly

#
Part #
Item
Price
Qty
Add
1
18336
K PLUG 1-1/16-121DSAETHD
$3.04
2
30616
4/0 TWST LINK CHAIN 96
$44.79
3
6696RP
CHAIN IDLER CASTING
$36.78
4
6674RP
LIFT CLEVIS SHORT W
$35.80
5
16088
Front lift bar

product not available CALL FOR AVAILABILITY

$0.00
6
23928
LU306K22 PUSH CH
$70.60
6
18241
59LBPUSH CHNL W/CLVSBARW
$137.34
7
18245
59LB CROSSWISE RR SUPORT
$205.70
8
24492
Push arm bracket

product not available CALL FOR AVAILABILITY

$0.00
9
16076
Rear chain idler bracket

product not available CALL FOR AVAILABILITY

$0.00
10
23373
Push arm bracket brace for L260

product not available CALL FOR AVAILABILITY

$0.00
11
24484
Idler bracket assembly

product not available CALL FOR AVAILABILITY

$0.00
13
4336
V GROOVE IDLR W BRG
$81.23
14
6095
BRG-BALL .626 ID X 1.85 OD
$33.79
15
3492
W172 V-BELT-F4501 59CL CF
$129.10
16
18335
7GAX 1-3/4X 2-9/16 LUG W
$9.51
17
5762
BOLT EYE 3/8 NC X 3-1/4 OPEN
$31.06
18
18327
L306-S ETC RR LIFT ANGLW

product not available CALL FOR AVAILABILITY

$134.49
19
23132
3/4 x 1 x 3/16 Sleeve

product not available CALL FOR AVAILABILITY

$2.16
20
1481RP
SHV 9.40 IB PI
$251.52
21
4001
BSHG P1 1-3/8 6 SPLND
$56.11
22
23374
V-belt shield for L260

product not available CALL FOR AVAILABILITY

$0.00
30
2688
5/32 HAIR PIN COTTER
$2.52
31
18270
PIN, SAFETY 3/16 X3-1/4
$1.19
32
1256
3/16 X 1, COTTER PIN
$1.19
33
14562
BOLT, HEX 5/16 NC X 1 GR5
$1.72
34
14139
NUT, LOCK FLANGE 5/16 NC
$3.13
35
13580
3/8 NC x l-1/2 Carriage bolt (See note 32)

product not available CALL FOR AVAILABILITY

$0.00
36
838
WASHER, LOCK, 3/8 ZP
$1.44
37
835
NUT, HEX 3/8 NC ZP
$1.72
38
16087
HHCS M14-1.50P X 35MM
$8.52
39
3379
BOLT, HEX 1/2 NC X 1-1/2 GR5 Z
$2.93
40
11900
NUT, LOCK FLANGE 1/2 NC
$1.90
41
409
PIN, CLEVIS 1/2 X 2
$6.75
42
5836
BOLT, CRG 5/8NC X 2-1/2 GR5 Z
$2.74
43
230
NUT, HEX, 5/8 NC PLATD
$1.72
44
1286
WASHER, LOCK, HEAVY ZP
$1.72
45
692
WASHER, FLAT, 5/8 STD ZP
$1.72
46
410
PIN CLV 5/8 X 1-3/4
$3.83
47
7453
WSHR 5/8ID 1-3/8OD 7/16THICK
$5.54

3652
W189 V-BELT
$136.04

23990
W194 V-BELT L306H284ETC
$155.14
