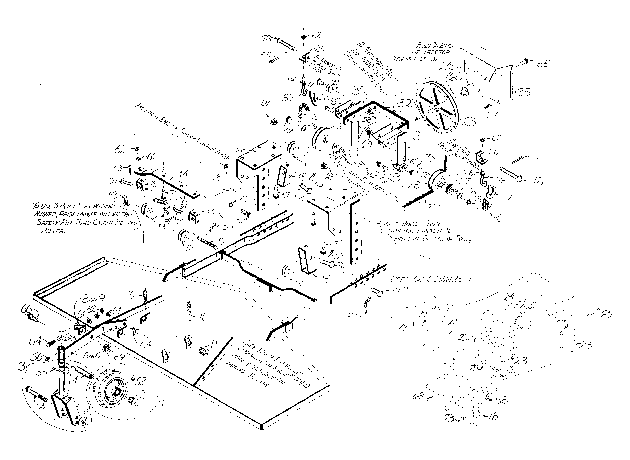

Woods Woods L59M25-1 Undermount/Mid-mount Rotary Cutter Mounting Frame Assembly

#
Part #
Item
Price
Qty
Add
1
4213
Tire,rim & bearing (8-1/4 inch OD)

product not available CALL FOR AVAILABILITY

$0.00
2
2905
FLANGE BRG FOR WH
$7.69
2
4228
59 ETC SPDL FLANGE BSHG
$47.34
3
12243
59ETC CASTER YK W/AXLE
$119.49
4
12242
17GA WAX5/8 X 3-3/8 TUBE
$26.84
5
18396
L59S RT CASTER ARM ASY

product not available CALL FOR AVAILABILITY

$165.50
6
18397
Left caster arm assembly (Used on earlier models)

product not available CALL FOR AVAILABILITY

$161.40
7
4181
.781 X 1.00 X .500 HT SLV
$3.75
8
18394
L59S ETC RT CASTER BRC W

product not available CALL FOR AVAILABILITY

$0.00
9
18395
Left caster arm brace

product not available CALL FOR AVAILABILITY

$0.00
10
6673
2/0 TWST LINK CHAIN 78IN
$31.09
11
18336
K PLUG 1-1/16-121DSAETHD
$3.04
12
6696RP
CHAIN IDLER CASTING
$36.78
13
6674RP
LIFT CLEVIS SHORT W
$35.80
14
23019
Front lift bar

product not available CALL FOR AVAILABILITY

$0.00
15
16076
Rear chain idler bracket

product not available CALL FOR AVAILABILITY

$0.00
16
23022
Right push bar assembly

product not available CALL FOR AVAILABILITY

$0.00
17
23023
Left push bar assembly

product not available CALL FOR AVAILABILITY

$0.00
18
16075
Idler bracket assembly

product not available CALL FOR AVAILABILITY

$0.00
19
18335
7GAX 1-3/4X 2-9/16 LUG W
$9.51
20
10772
Rear lift lug

product not available CALL FOR AVAILABILITY

$109.56
21
23020
Right idler bracket angle (See note 8)

product not available CALL FOR AVAILABILITY

$0.00
22
23021
Left idler bracket angle (See note 9)

product not available CALL FOR AVAILABILITY

$0.00
23
1481RP
SHV 9.40 IB PI
$251.52
24
4001
BSHG P1 1-3/8 6 SPLND
$56.11
24
17490
H1, 1-3/8 6B splined bushing With bolts (See note 12)

product not available CALL FOR AVAILABILITY

$18.00
25
23515
Belt shield (See note 14)

product not available CALL FOR AVAILABILITY

$0.00
25
23028
Belt shield (See note 15)

product not available CALL FOR AVAILABILITY

$0.00
27
6095
BRG-BALL .626 ID X 1.85 OD
$33.79
28
4336
V GROOVE IDLR W BRG
$81.23
29
4152
W180 V-BELT - 4501 59C
$127.10
29
3492
W172 V-BELT-F4501 59CL CF
$129.10
30
23506
Right idler bracket (See note 18)

product not available CALL FOR AVAILABILITY

$0.00
31
23507
Left idler bracket (See note 19)

product not available CALL FOR AVAILABILITY

$0.00
32
23514
Drawbar assembly (See note 20)

product not available CALL FOR AVAILABILITY

$0.00
51
2688
5/32 HAIR PIN COTTER
$2.52
52
2909
Straight 1/4 Self-tap grease fitting (See note 8)

product not available CALL FOR AVAILABILITY

$0.00
53
1256
3/16 X 1, COTTER PIN
$1.19
54
18270
PIN, SAFETY 3/16 X3-1/4
$1.19
55
21020
1/4X1-1/4 SPIROL PIN
$2.31
56
12296
FITTING, GREASE 1/4-28 X 15/32
$1.54
57
5295
5/16 NC x 1 inch Hex head cap screw (See note 9)

product not available CALL FOR AVAILABILITY

$0.00
58
14139
NUT, LOCK FLANGE 5/16 NC
$3.13
59
5762
BOLT EYE 3/8 NC X 3-1/4 OPEN
$31.06
60
2457
BOLT, HEX, 1/4NC X 3/4, GR5
$1.19
61
838
WASHER, LOCK, 3/8 ZP
$1.44
62
835
NUT, HEX 3/8 NC ZP
$1.72
63
13580
3/8 NC x l-1/2 Carriage bolt (See note 32)

product not available CALL FOR AVAILABILITY

$0.00
64
12169
BOLT, HEX 3/8 NC X 1-1/4 GR5
$1.54
65
23029
HHCS M12-1.75P X 25MM
$2.13
66
6100
BOLT, HEX 1/2 NC X 1-1/4 GR5
$2.52
67
3379
BOLT, HEX 1/2 NC X 1-1/2 GR5 Z
$2.93
68
3508
BOLT, HEX 1/2 NC X 4-1/2 GR5 Z
$5.40
69
11900
NUT, LOCK FLANGE 1/2 NC
$1.90
70
409
PIN, CLEVIS 1/2 X 2
$6.75
71
23030
HHCS M14-2.0P X 35MM
$3.62
72
16087
HHCS M14-1.50P X 35MM
$8.52
73
5836
BOLT, CRG 5/8NC X 2-1/2 GR5 Z
$2.74
74
230
NUT, HEX, 5/8 NC PLATD
$1.72
75
692
WASHER, FLAT, 5/8 STD ZP
$1.72
76
1286
WASHER, LOCK, HEAVY ZP
$1.72
77
410
PIN CLV 5/8 X 1-3/4
$3.83
78
8099
PIN CLV 5/8 X 3-3/4 HT
$31.36
79
854
WASHER, FLAT, 1/2 STD ZP
$1.44
80
13759
BOLT, HEX 3/4 NC X 2-1/4 GR5
$3.91
81
1450
NUT, HEX 3/4 NC
$2.13
82
24576
HHCS 1/2 NC X 1-3/4 GR5 ZP
$2.52
83
22240
WSHR 3/4ID 1-3/16OD 10GATHICK
$4.89
