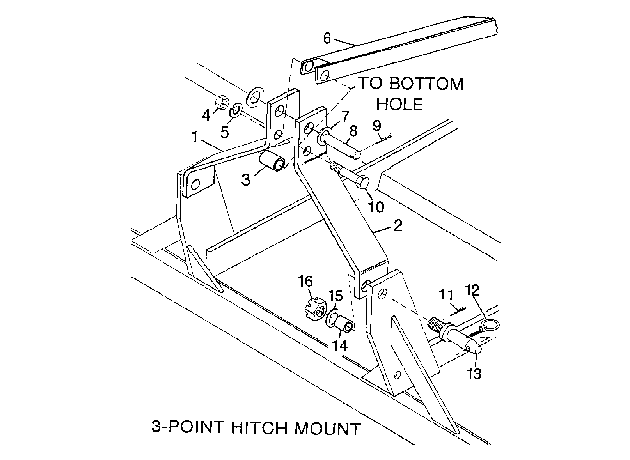

Woods Woods M121-2 (1990 and Below) Multi-Spindle Cutter 3-Point Hitch Assembly (Mounted Units Only)

#
Part #
Item
Price
Qty
Add
1
27272
M121 ETC RT A FRAME HALF
$261.60
2
W27273
M121 ETC LT A FRAME HALF
$189.68
3
12587RP
SLV 3/4 X 1-1/4 X 2-1/4
$20.32
4
1450
NUT, HEX 3/4 NC
$2.13
5
2522
WASHER, LOCK 3/4
$0.99
6
27277
M121 ETC TOP LINK WLDMT

product not available CALL FOR AVAILABILITY

$182.01
7
1863
WASHER, FLAT, 1 SAE ZP
$2.13
8
8345
PIN, HDLS 1.00 X 4.08
$16.47
9
1285
PIN, COTTER 1/4 X 1-1/2
$1.44
10
12558
HHCS 3/4 NC X 4-1/2
$6.42
11
1266
PIN, COTTER 3/16 X 1-1/2
$1.44
12
27542
PIN, KLIK HT 7/16 X 11/32
$6.22
13
W14012
CAT, 2 HITCH PIN1-1/8DRLD
$52.50
14
27130
1-1/8 x 1-7/16 x 9/16 Sleeve, HT (See note 33)

product not available CALL FOR AVAILABILITY

$0.00
15
W23278
WSHR 1-1/8 X 1-7/8 X 1/4 FLAT
$14.45
16
14153
NUT, 1-1/8NF SLOTTED
$9.86
