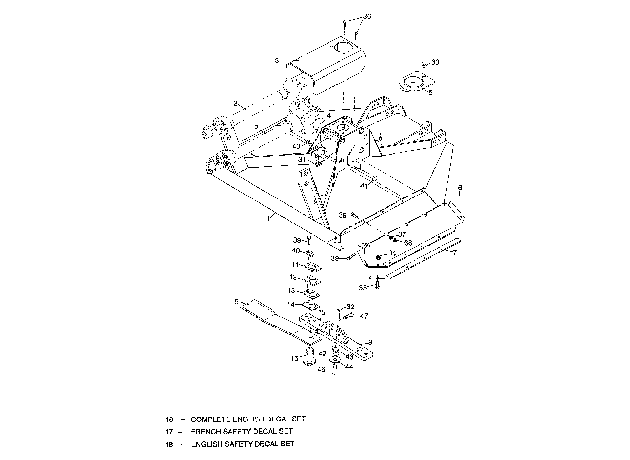

Woods Woods M84-2 Single Spindle (1974-91) Single Spindle Cutter Main Frame Assembly Common Parts

#
Part #
Item
Price
Qty
Add
1
9607
Frame

product not available CALL FOR AVAILABILITY

$0.00
2
9369
6SCLCH 1.5B35N X30 SQ SH
$1,223.19
2
9364
Shear pin universal drive

product not available CALL FOR AVAILABILITY

$0.00
3
23793
M60-4ETC CLUTCH DRV SHLD
$75.05
4
18482
84-1 ETC GEAR BOX 1-1
$2,144.83
5
3444RP
ACCESS HOLE COVER
$22.22
6
18544
84-1 ETC LT SIDE FRM ASY
$316.94
7
20404
Skid shoe

product not available CALL FOR AVAILABILITY

$0.00
8
18450
84-1 ETC CROSSBAR ASY
$530.84
9
23310
Double edge hook (See note 4)

product not available CALL FOR AVAILABILITY

$0.00
9
6322
6322

product not available CALL FOR AVAILABILITY

$0.01
9
8825
1/2 x 4 x 30 CCW Blade

product not available CALL FOR AVAILABILITY

$0.00
9
6323KT
KIT, BLADE, 6323 STD
$197.09
9
6323
3/8 x 4 x 30 CCW Formed blade

product not available CALL FOR AVAILABILITY

$0.01
10
32604RP
BLADE PIN LOCK CLIP SPEC
$4.39
11
32603
PLATE, KEYHOLE SPECIAL
$11.23
12
5523RP
SPACER
$4.61
13
10520RP
18GA 1-1/2 BLD PIN SHIM
$6.98
14
13946RP
20 GA 1-1/2 BLD PIN SHIM
$3.74
15
32602
PIN, BLADE 2.39
$28.82
16
1015841
DCL SET CMPL SINGL SPDL CUTTR
$186.00
17
51521
French safety decal set

product not available CALL FOR AVAILABILITY

$238.60
18
31521
DCL SET SFTY SINGL/MULT
$208.53
31
7142
1/4 X 1/4 X 2 KEY
$5.90
32
4614
1/4 X 3/8 X 3-1/4 KEY
$3.54
33
1287
NUT WING 3/8 NC
$1.72
34
14350
NUT, LOCK FLANGE 3/8 NC
$1.72
35
21636
BOLT, 3/8 X1-1/4CLPDHDPL
$2.02
36
1686
BOLT, HEX 3/8 NC X 3/4 GR5 ZP
$1.19
37
855
WASHER, LOCK, 1/2 ZP
$1.44
38
1093
NUT, HEX HEAVY 1/2 NC ZP
$1.54
39
6100
BOLT, HEX 1/2 NC X 1-1/4 GR5
$2.52
40
6239
NUT, LOCK, 5/8 NC
$2.31
41
11043
HHCS 5/8 NC X 7-1/2 GR5
$7.22
42
11204
SHIM 13/16ID .010THICK
$3.80
43
6854
SHIM 13/16ID 1-7/8OD 20GATHICK
$3.71
44
W7828
WASHER, 3/4 X 2-1/2 X 1/4 HT
$11.72
45
2371
NUT, LOCK, 3/4 NC ZP
$3.23
46
4616
HHCS 3/4 NC X 1-1/2 GR5 ZP
$9.63
47
15007
HHCS 3/4 NC X 3-1/2 GR5 ZP
$5.24
