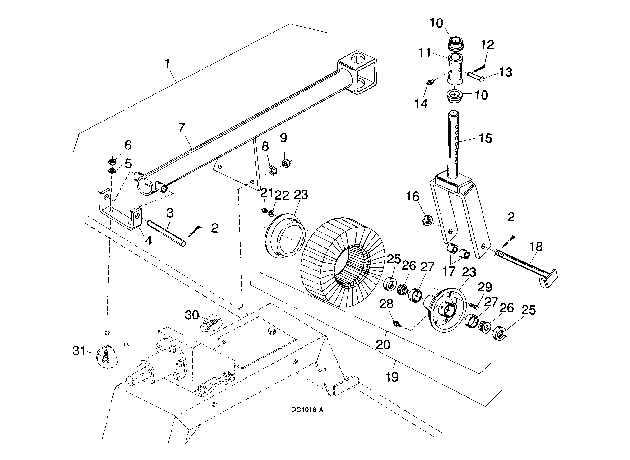

Woods Woods MD-O80 Multi-Spindle Cutter Tailwheel Assembly

#
Part #
Item
Price
Qty
Add
1
7099
Tailwheel bundle

product not available CALL FOR AVAILABILITY

$0.00
2
1266
PIN, COTTER 3/16 X 1-1/2
$1.44
3
7104
PIN CLV 3/4 X 6-7/8
$45.20
4
7103
BRKT FOR TW

product not available CALL FOR AVAILABILITY

$61.51
5
855
WASHER, LOCK, 1/2 ZP
$1.44
6
1093
NUT, HEX HEAVY 1/2 NC ZP
$1.54
7
7105
Arm

product not available CALL FOR AVAILABILITY

$0.00
8
1286
WASHER, LOCK, HEAVY ZP
$1.72
9
230
NUT, HEX, 5/8 NC PLATD
$1.72
10
5542
1.5 X 1.8 X 3/4 BUSHING
$47.45
11
5556
SLV 1.50 X 2.25 X 3.470

product not available CALL FOR AVAILABILITY

$144.54
12
3597
PIN, COTTER 1/8 X 1
$1.72
13
5561
PIN CLV 1/2 X 2-3/4
$30.39
14
1972
FITTING, GREASE ZERK 1/4-28
$2.93
15
5552
Tailwheel fork

product not available CALL FOR AVAILABILITY

$0.00
16
5849
NUT, SLOTTED, 3/4-16 X 21/32,
$3.13
17
23639
SLV 3/4 X 1-1/8 X 29/32
$40.96
18
5557
Axle

product not available CALL FOR AVAILABILITY

$0.00
19
5602
Wheel and Tire complete

product not available CALL FOR AVAILABILITY

$0.01
21
4529
NUT, HEX 5/16 NC
$2.13
22
4378
WASHER, FLAT SAE 5/16
$0.78
23
9749
4X12 NOTAT W-3/4TPRD BRG
$307.06
25
5624
SEAL 1.125 X 1.78 X .47
$6.42
26
2304
BRG-CONE, LM11949
$18.74
27
2306
BRG-CUP, LM11910
$11.43
28
6270
Grease fitting for hub cap

product not available CALL FOR AVAILABILITY

$0.00
29
5651
5/16 NC x 5/8 HHCS

product not available CALL FOR AVAILABILITY

$0.00
30
7832
5/8 NC x 1-1/2 Hex head cap screw GR5 (See note 14)

product not available CALL FOR AVAILABILITY

$0.00
31
3379
BOLT, HEX 1/2 NC X 1-1/2 GR5 Z
$2.93
