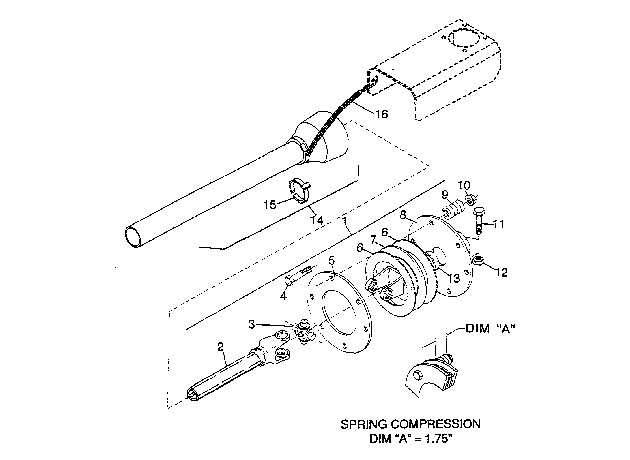

Woods Woods MD184 Single Spindle (6/96) Single Spindle Cutter European Drives - Rear Assembly

#
Part #
Item
Price
Qty
Add
1
20171
Yoke clutch assembly (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
2
20232
Drive yoke/shaft

product not available CALL FOR AVAILABILITY

$0.00
3
20167
Universal joint kit

product not available CALL FOR AVAILABILITY

$0.00
4
13927
HHCS 3/8 NC X 3-3/4 GR5
$2.13
5
13931RP
6S CLUTCH BACK UP PLT
$56.16
6
19459
FRICTION DISC 4 X 6.15
$28.79
7
20169
Yoke clutch/plate

product not available CALL FOR AVAILABILITY

$0.00
8
13933RP
6S CLCH HUB 1-1/2 W/BSHG
$260.58
9
29667
2 GA x 2-3/16 Compression spring

product not available CALL FOR AVAILABILITY

$0.00
10
12914
NUT LOCK 3/8 NC WIDE FLNG
$2.31
11
6048
HHCS 7/16 NC X 3-1/2 GR5
$2.74
12
W13921
NUT LOCK 7/16 NC
$1.72
13
11576
BUSHING 1-7/16 X 1-5/8X9/16 BR
$8.99
14
20233
Drive shield, male plastic (See note 2)

product not available CALL FOR AVAILABILITY

$0.00
17
20231
Drive assembly, rear male (See note 5)

product not available CALL FOR AVAILABILITY

$0.00
