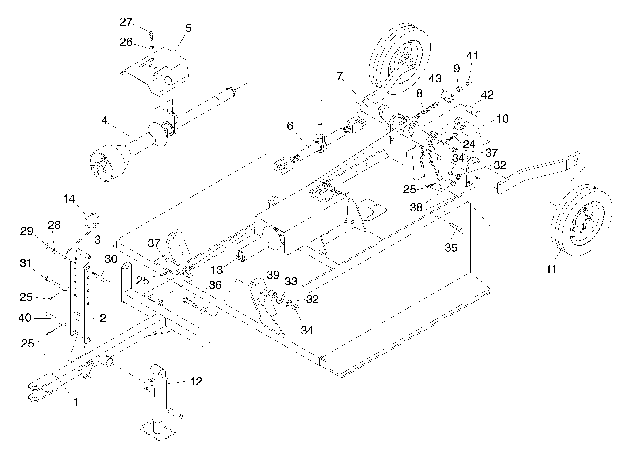

Main Frame Assembly (Pull-Type)

#
Part #
Item
Price
Qty
Add
1
8764
Tongue assembly

product not available CALL FOR AVAILABILITY

$0.00
2
7668RP
60-4 ETC H FRAME ASY
$126.34
3
7035
PIPE, 1/2 SCHEDULE 40 X 3.56
$17.39
5
19012
BLNK DRV SHIELD 10.5
$87.51
6
23649
Ratchet adjustment Link with pins

product not available CALL FOR AVAILABILITY

$0.00
7
8763
Wheel yoke assembly

product not available CALL FOR AVAILABILITY

$338.50
8
11174
60-4 ETC LEVELER ROD

product not available CALL FOR AVAILABILITY

$136.51
9
11190
PIPE 3/4 SCH 80X 0.75

product not available CALL FOR AVAILABILITY

$51.99
10
15733
Transport lock bar

product not available CALL FOR AVAILABILITY

$0.00
12
23790
JACK, PARKING SWIVEL 2000LBS
$172.80
13
9305
6SCLCH1.375B14N-1-3/16SQ
$548.02
13
9073
SHAFT
$150.83
14
3443
HYD HOSE HOLDER
$49.16
24
18270
PIN, SAFETY 3/16 X3-1/4
$1.19
25
1256
3/16 X 1, COTTER PIN
$1.19
26
838
WASHER, LOCK, 3/8 ZP
$1.44
27
839
BOLT, HEX 3/8 NC X 1 GR5 ZP
$1.54
28
855
WASHER, LOCK, 1/2 ZP
$1.44
29
1093
NUT, HEX HEAVY 1/2 NC ZP
$1.54
30
12305
BOLT, HEX 1/2 NC X 5-1/2 GR5
$3.23
31
W404
PIN, CLV 1/2 X 5-3/4 HT
$18.64
32
1286
WASHER, LOCK, HEAVY ZP
$1.72
33
692
WASHER, FLAT, 5/8 STD ZP
$1.72
34
230
NUT, HEX, 5/8 NC PLATD
$1.72
35
4548
BOLT, HEX 5/8 NC X 1-3/4 GR5 Z
$2.31
36
12274
BOLT, HEX 5/8 NC X 2-1/4 GR5
$3.54
37
5777
PIN CLV 5/8 X 2-1/4
$15.03
38
8099
PIN CLV 5/8 X 3-3/4 HT
$31.36
39
11081
BSHG 5/8 X 7/8 X 11/16 HT
$42.53
40
W8317
PIN CLV 5/8 X 5-21/32
$36.32
41
2371
NUT, LOCK, 3/4 NC ZP
$3.23
42
11099
1-1/4 X 3-1/4 LONG PIN

product not available CALL FOR AVAILABILITY

$37.38
43
11100
1-5/16 x 1-3/4 x2-1/8 Sleeve

product not available CALL FOR AVAILABILITY

$108.46
