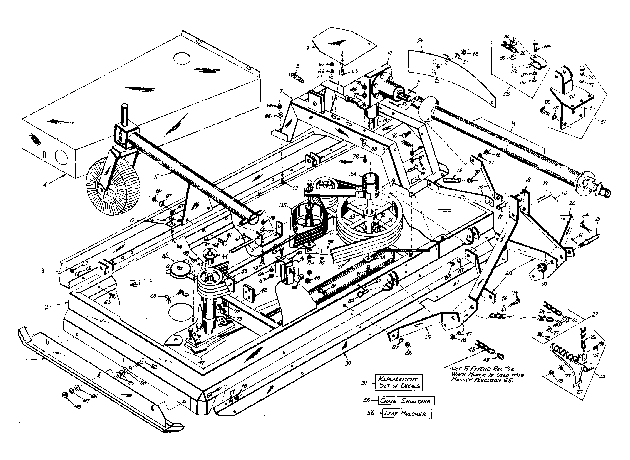

Woods Woods MO80-6 (1959) Multi-Spindle Cutter Main Assembly

#
Part #
Item
Price
Qty
Add
1
1563
C80 C080 C114SKID W/HDWR
$226.35
2
7128
Frame only

product not available CALL FOR AVAILABILITY

$0.00
3
W7555
CO80 REAR SHIELD
$119.75
4
W12161
C080 ETC V-BELT SHIELD

product not available CALL FOR AVAILABILITY

$365.49
6
467
REAR SHIELD BRACE
$57.56
7
7108
Gear box stand

product not available CALL FOR AVAILABILITY

$0.00
8
419
SPR/EXT0.88 .15 4.1 107
$20.19
9
4989
Shield for gear box stand

product not available CALL FOR AVAILABILITY

$0.00
11
1036666RP
KEY, 3/8 X 3/8 X 2
$8.36
12
609
Pin

product not available CALL FOR AVAILABILITY

$0.00
13
607RP
3/8 X 3/8 X 2-3/8 KEY

product not available CALL FOR AVAILABILITY

$3.60
14
2568
Universal dr (See note 5)

product not available CALL FOR AVAILABILITY

$0.00
15
2266
Spacer

product not available CALL FOR AVAILABILITY

$0.00
16
W07053
Connecting link

product not available CALL FOR AVAILABILITY

$0.00
17
7048
"A" frame spacer

product not available CALL FOR AVAILABILITY

$0.00
18
7043
"A" frame

product not available CALL FOR AVAILABILITY

$0.00
19
1591
PIN CLV 3/4 X 4-3/8
$18.65
20
7114
Left outside brace

product not available CALL FOR AVAILABILITY

$0.00
21
7049
CTGY 1 MTG PIN 5-3/4LONG
$21.29
22
4782
Chains & pin (See note 7)

product not available CALL FOR AVAILABILITY

$0.00
22
1295
SEAL
$12.81
23
1328
Pin

product not available CALL FOR AVAILABILITY

$0.00
24
W004040
DEL- ROD ASSEMBLY W/BUSHINGS
$792.47
25
4787
Catch bar & chain (See note 9)

product not available CALL FOR AVAILABILITY

$0.00
25
1297
Catch bar & chain (See note 4)

product not available CALL FOR AVAILABILITY

$0.00
26
4010
Chain

product not available CALL FOR AVAILABILITY

$0.00
27
W004020
DEL- PACKING KIT
$130.61
28
7050
Inside brace

product not available CALL FOR AVAILABILITY

$0.00
29
W07052
Right outside brace

product not available CALL FOR AVAILABILITY

$0.00
30
464
C80 ETC FRONT SHIELD

product not available CALL FOR AVAILABILITY

$129.79
31
1999
DCL SET CMPL C114
$234.10
32
1557
Bushing

product not available CALL FOR AVAILABILITY

$0.00
33
1883
Sheave

product not available CALL FOR AVAILABILITY

$0.00
34
10717RP
ASSEMBLY, C080 IDLER ARM

product not available CALL FOR AVAILABILITY

$268.84
36
7116
Take-up rod

product not available CALL FOR AVAILABILITY

$0.00
37
4927
W114 SET 4 V-BLTS BO80
$310.78
38
606
LUG 1/4 X 1-1/2 X 2

product not available CALL FOR AVAILABILITY

$81.98
39
2241
WSHR 41/64ID 1-3/16OD 5/16THCK
$56.35
40
2390RP
INR SLIDE - GUIDE ASSEM
$84.82
41
2389RP
OUTR SLIDE - GUIDE ASSEM
$114.88
43
29038RP
C80 ETC SPINDLE SUPP PLT
$90.98
44
1482
BSHG P1 1-1/4 STRT BORE
$56.59
45
7111RP
SHV 6.80 4B PI
$186.74
46
3444RP
ACCESS HOLE COVER
$22.22
48
4785
Chain

product not available CALL FOR AVAILABILITY

$0.00
49
4155
1/4COLD SHUT REPAIR LINK

product not available CALL FOR AVAILABILITY

$11.25
50
3196
Bracket (See note 3)

product not available CALL FOR AVAILABILITY

$0.00
51
3190
Third point bracket assem (See note 2)

product not available CALL FOR AVAILABILITY

$0.00
52
6211
Clevis

product not available CALL FOR AVAILABILITY

$0.00
53
2520
Bracket & chain (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
54
2128
C80 ETC ANTIWNDRO BFL
$159.92
60
1256
3/16 X 1, COTTER PIN
$1.19
61
1266
PIN, COTTER 3/16 X 1-1/2
$1.44
62
5295
5/16 NC x 1 inch Hex head cap screw (See note 9)

product not available CALL FOR AVAILABILITY

$0.00
63
839
BOLT, HEX 3/8 NC X 1 GR5 ZP
$1.54
64
3282
3/8 X 1-1/2 CLINCH PIN
$3.74
65
565
WASHER, FLAT 3/8
$1.72
66
838
WASHER, LOCK, 3/8 ZP
$1.44
67
835
NUT, HEX 3/8 NC ZP
$1.72
68
1287
NUT WING 3/8 NC
$1.72
69
25475
BOLT, HEX 1/2 NC X 1 GR5 ZP FU
$2.13
70
745
REPL BY 1 6100

product not available CALL FOR AVAILABILITY

$0.01
71
1262RP
HHCS 1/2 NC X 1-1/4 DRL HD

product not available CALL FOR AVAILABILITY

$22.89
72
3379
BOLT, HEX 1/2 NC X 1-1/2 GR5 Z
$2.93
73
3452
HHCS 1/2 NF X 1-1/2 HT
$12.05
74
24576
HHCS 1/2 NC X 1-3/4 GR5 ZP
$2.52
75
6240
1/2 NC x 2-1/4 Hex head cap screw (See note 16)

product not available CALL FOR AVAILABILITY

$0.00
76
854
WASHER, FLAT, 1/2 STD ZP
$1.44
77
855
WASHER, LOCK, 1/2 ZP
$1.44
78
1093
NUT, HEX HEAVY 1/2 NC ZP
$1.54
79
6241
NUT, LOCK NYLOC 1/2 NC
$1.67
80
6268
5/8 NC x 1-1/4 Hex head cap screw (See note 36)

product not available CALL FOR AVAILABILITY

$0.00
81
738
5/8 NC x 1-1/2 Hex head cap screw

product not available CALL FOR AVAILABILITY

$0.00
82
2855
BOLT, CARRIAGE 5/8 NC X 2
$3.13
83
5777
PIN CLV 5/8 X 2-1/4
$15.03
84
11854
BOLT, HEX 5/8 NC X 2-1/2
$5.06
85
692
WASHER, FLAT, 5/8 STD ZP
$1.72
86
2323
5/8 Sheared washer (See note 61)

product not available CALL FOR AVAILABILITY

$8.25
87
1286
WASHER, LOCK, HEAVY ZP
$1.72
88
230
NUT, HEX, 5/8 NC PLATD
$1.72
89
2864
WASHER, FLAT, 3/4, ZINC-PLT ST
$0.32
90
513
NUT
$4.03
91
1017
3/8 NC x 1-1/4 Hex head cap screw (See note 21)

product not available CALL FOR AVAILABILITY

$0.00
92
614
5/8 NC x 1-3/4 Hex head cap screw (See note 35)

product not available CALL FOR AVAILABILITY

$0.00
93
6238
5/8 NC x 2-1/4 Hex head cap screw (See note 23)

product not available CALL FOR AVAILABILITY

$0.00
