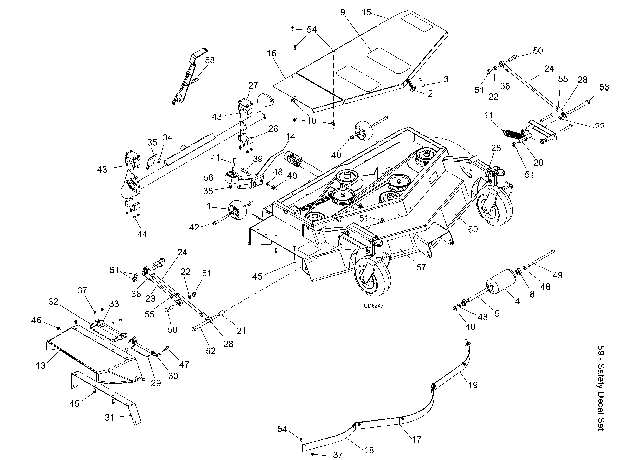

MX54 Deck Assembly

#
Part #
Item
Price
Qty
Add
1
W09253700
WHEEL 3 X 5
$34.96
2
1001975
FLEX DRAW LATCH
$32.82
3
1001994
1/8 No. 43 Blind rivet (See note 2)

product not available CALL FOR AVAILABILITY

$0.00
4
1006418
ROLLER 4 X 7.38
$37.81
5
1006420
SPACER .75 X 7.27
$24.61
8
35193
BEARING, BALL 6203
$22.96
9
W72411
FOOT REST TREAD
$13.54
10
74047
SPRING NUT 5/16-18 U-TAPERED
$1.90
11
75107
SPRING EXT 1.50 .187 7.6 43
$41.26
13
78107
DISCHARGE, CHUTE
$116.21
14
78109RP
WA PARKING STAND
$664.62
15
78212
COVER BELT, REMOVABLE 54 DECK
$186.74
16
78153RP
COVER BELT 54 DECK
$48.28
17
78155RP
BAFFLE EXT CNTR 54 DECK
$71.35
18
78156RP
BAFFLE EXT RT CNTR 54 DECK
$56.81
19
78157RP
BAFFLE EXT LT CNTR 54 DECK
$60.87
20
78120
TUBE CHANNEL INNER
$15.02
21
78121
TUBE CHANNEL OUTER
$15.02
22
78122
TUBE ROD SPACER
$6.23
23
78158
Ground rod, 8.75 inch (See note 10)

product not available CALL FOR AVAILABILITY

$38.83
24
78159
LIFT ROD 54 DECK 18.38 LG
$31.71
25
78125
STABILIZER
$77.88
26
78128
BUSHING DECK LIFT ARM
$41.57
27
78129RP
PLATE RETAINING BSHG

product not available CALL FOR AVAILABILITY

$13.01
28
78133
ROD END 5/8 RH
$33.75
29
78143
SPRING DISCHARGE CHUTE
$71.16
30
78144
PIN HINGE DISCHARGE CHUTE
$13.83
31
78145RP
STIFFENER CHUTE
$59.82
32
78146RP
HINGE CHUTE
$54.66
33
78147RP
HINGE DECK
$43.35
34
78162
SCREW 10NC SELF-TAPPING YD
$0.20
35
78164RP
HEIGHT INDICATOR

product not available CALL FOR AVAILABILITY

$20.45
36
78166
ROD END 5/8 LH
$34.96
37
78173
NUT, LOCK, 5/16 NC FLNG YD
$0.32
38
15030
NUT 3/8 NC FLANGE LOCK
$1.65
39
78176
1/2 NC x 1-1/2 HHCS GR5 (See note 19)

product not available CALL FOR AVAILABILITY

$0.00
40
78177
1/2 NC Flange lock nut (Standard hardware, obtain locally)

product not available CALL FOR AVAILABILITY

$0.00
41
78178
3/8 NC x 3-1/4 HHCS GR5 (See note 21)

product not available CALL FOR AVAILABILITY

$0.00
42
78179
1/2 NC x 4-1/2 HHCS GR5 (See note 22)

product not available CALL FOR AVAILABILITY

$0.00
43
78180
5/16 NC x 3-1/2 HHCS GR5 (See note 23)

product not available CALL FOR AVAILABILITY

$0.00
44
78181
5/16 NC Lock nut (See note 3)

product not available CALL FOR AVAILABILITY

$0.00
45
78182
5/16 NC x 1 Carriage bolt (See note 25)

product not available CALL FOR AVAILABILITY

$0.00
46
78183
Screw, self-tapping 5/16-12 type B (See note 26)

product not available CALL FOR AVAILABILITY

$0.00
47
78184
Safety pin .09 X 2.31 (See note 27)

product not available CALL FOR AVAILABILITY

$0.00
48
78186
1/2 Flat washer SAE (Standard hardware, obtain locally)

product not available CALL FOR AVAILABILITY

$0.00
49
78189
HHCS 1/2NC X 9 GR5 YD
$11.20
50
78190
5/8 NC x 2 HHCS GR5 (See note 29)

product not available CALL FOR AVAILABILITY

$0.00
51
78191
NUT HEX CNTR LK 5/8NC YD
$2.74
52
78192
5/8 NC x 7-1/2 HHCS GR5

product not available CALL FOR AVAILABILITY

$6.37
53
78193
5/8 NC x 6-1/2 HHCS GR5

product not available CALL FOR AVAILABILITY

$5.85
54
78205
5/16 NC x 3/4 HHCS GR5 (See note 30)

product not available CALL FOR AVAILABILITY

$0.00
55
78208
5/8 NF Jam nut (See note 31)

product not available CALL FOR AVAILABILITY

$0.00
56
W73256
ROLLER
$10.89
57
78708
DCL, MODEL MX54
$12.66
58
78132
HEIGHT DECAL
$3.19
59
78209
Deck basic safety decal set. See SAFETY & INSTRUCTIONAL DECALS for decal illustrations. (See note 32

product not available CALL FOR AVAILABILITY

$29.48
60
78700
DCL, MOWN MACHINE
$6.87
