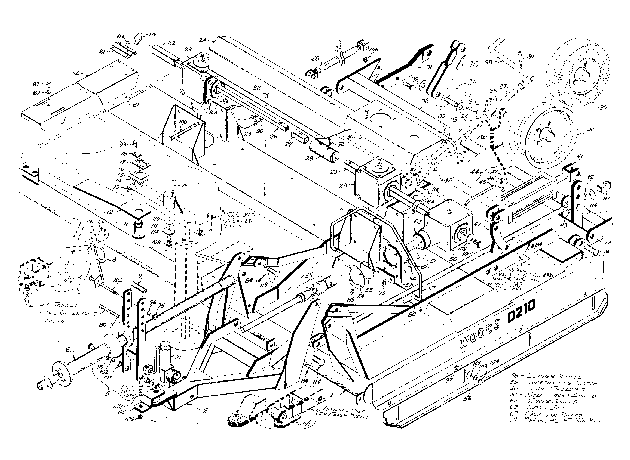

Woods Woods O210Q-2 Multi-Spindle Cutter O210Q-2 Main Assembly

#
Part #
Item
Price
Qty
Add
1
22647
Frame only (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
2
9774
TONGUE ASSEMBLY 44.03L
$826.98
3
13999
Tongue clevis with hardware

product not available CALL FOR AVAILABILITY

$0.00
4
13985
1-3/8 x 2 x 5/8 Heat treated bushing

product not available CALL FOR AVAILABILITY

$0.00
5
11940
315 ETC H FRM W HDWR
$192.46
6
13129
Front 2/3 of 3 joint drive

product not available CALL FOR AVAILABILITY

$0.00
7
W404
PIN, CLV 1/2 X 5-3/4 HT
$18.64
8
3443
HYD HOSE HOLDER
$49.16
9
7035
PIPE, 1/2 SCHEDULE 40 X 3.56
$17.39
10
23790
JACK, PARKING SWIVEL 2000LBS
$172.80
11
32606
SPECIAL BLADE PIN KIT2.4
$38.87
12
23309
Double edge hook blade

product not available CALL FOR AVAILABILITY

$0.00
12
4742KT
KIT, BLADE, 4742 STD
$169.47
12
17130KT
KIT, BLADE, 17130 STD
$159.43
12
17190
HS105 Flat blade for brush

product not available CALL FOR AVAILABILITY

$0.00
12
4742
S105 etc. suction-type general purpose Blade

product not available CALL FOR AVAILABILITY

$0.00
12
17130
Standard suction blade, CW (See note 5)

product not available CALL FOR AVAILABILITY

$0.00
13
29269
1-5/8 CLMP CROSS BAR CMP
$400.20
14
10520RP
18GA 1-1/2 BLD PIN SHIM
$6.98
15
13946RP
20 GA 1-1/2 BLD PIN SHIM
$3.74
16
5523RP
SPACER
$4.61
17
32603
PLATE, KEYHOLE SPECIAL
$11.23
18
32604RP
BLADE PIN LOCK CLIP SPEC
$4.39
19
11041
3/8 x 3/8 x 2-7/8 Key

product not available CALL FOR AVAILABILITY

$0.00
20
7837
72-3ETC RR DRV SHFT SHLD
$290.66
21
6747
SHLD STRAP

product not available CALL FOR AVAILABILITY

$24.26
22
11298
214 ETC END BOX DRV TUBE
$102.35
23
17068
D315ETC 1TO1 WING GR BOX
$1,973.94
24
18084
Cross drive shield

product not available CALL FOR AVAILABILITY

$0.00
25
3444RP
ACCESS HOLE COVER
$22.22
26
18061
O210 ETC TORSION BAR
$233.68
27
18063
O210 ETC CRS DRV SQ SLV
$89.28
28
18064
O210 ETC DRV CNCTG TUBE
$606.25
29
23223
Drive shaft assembly

product not available CALL FOR AVAILABILITY

$0.00
30
18068
Gear box shield

product not available CALL FOR AVAILABILITY

$0.00
31
18135
Wheel yoke arm

product not available CALL FOR AVAILABILITY

$0.00
31
9393
Spring wheel yoke arm (See note 12)

product not available CALL FOR AVAILABILITY

$0.00
32
9386
Wheel yoke tube assembly

product not available CALL FOR AVAILABILITY

$0.00
33
7874
Clevis tube

product not available CALL FOR AVAILABILITY

$441.30
34
7969RP
SLV 1-1/64X 1-3/4 X 3/4
$43.91
35
1893
BEARING THRUST TIMKEN T101
$42.61
36
7180
Pivot casting

product not available CALL FOR AVAILABILITY

$27.28
37
7943
Height adjustment rod

product not available CALL FOR AVAILABILITY

$101.75
38
7878
Crank

product not available CALL FOR AVAILABILITY

$153.60
40
1729
6.00 x 9 Notat Tire & wheel

product not available CALL FOR AVAILABILITY

$0.00
41
10475
3-1/2X8 HYD CYLW
$274.00
42
12550
ATTITUDE ROD ASY

product not available CALL FOR AVAILABILITY

$106.11
43
10417RP
214ETC, HT ADJ PIVOT BLK
$36.84
44
9382
1/4 x 156 inch Hydraulic hose kit, (See note 8)

product not available CALL FOR AVAILABILITY

$0.00
45
8669
HOSE, 1/4 X 1/4 X 156
$104.20
46
W11893
ADAPTER, 1/4 NPTF 1/2 NPTM
$2.52
47
10290
FITTING, ELBOW 1/4 X X1/4 W/1/
$6.75
48
7948
SPR/CMP3.25 .50 34.0
$114.73
49
18113
O210 ETC HYD PIVOT LINK

product not available CALL FOR AVAILABILITY

$186.46
50
18086
O210 ETC GEAR BOX 1-1
$1,590.87
51
7142
1/4 X 1/4 X 2 KEY
$5.90
52
18104
Gear box support plate

product not available CALL FOR AVAILABILITY

$0.00
53
18103
O-RING 3-7/8OD 3/16THK

product not available CALL FOR AVAILABILITY

$5.69
54
18101
O210 ETC CLAMP PLATE

product not available CALL FOR AVAILABILITY

$36.78
55
9307
Rear half of univ dr (See note 20)

product not available CALL FOR AVAILABILITY

$0.00
56
23432
Right side skid With hardware (See note 21)

product not available CALL FOR AVAILABILITY

$0.00
56
18129
O210ETC SIDE SKID W HDWR
$193.46
57
7838
B315ETC REAR SHLD SUPPRT
$144.68
58
18155
14 inch Wheel, hub & long axle (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
59
7950
Overrunning clutch

product not available CALL FOR AVAILABILITY

$0.00
61
18140
O210ETC FRONT SHIELD

product not available CALL FOR AVAILABILITY

$141.36
62
18153
Grove shield (See note 26)

product not available CALL FOR AVAILABILITY

$0.00
63
31521
DCL SET SFTY SINGL/MULT
$208.53
64
18282
Flopper

product not available CALL FOR AVAILABILITY

$504.00
65
23225
1-1/2 Square ID x 2-1/2 x 5/8 tube

product not available CALL FOR AVAILABILITY

$0.00
66
23648
TRACTOR DRAWBAR TNG BRKT
$39.78
67
8811
BLADE CARRIER, KIT CROSSBAR PU
$1,061.55
68
23650
Ratchet adjustment link

product not available CALL FOR AVAILABILITY

$0.00
69
26321
Manual ht adjustment kit (See note 28)

product not available CALL FOR AVAILABILITY

$0.00
80
1256
3/16 X 1, COTTER PIN
$1.19
81
1282
SCREW, ROUND HEAD SLOTTED 1/4N
$0.67
82
10378
BOLT, HEX 1/4NC X 1 GR5
$0.90
83
6128
1/4 NC Lock nut (See note 30)

product not available CALL FOR AVAILABILITY

$0.00
84
1285
PIN, COTTER 1/4 X 1-1/2
$1.44
85
7970
5/16 x 1-1/4 Spring pin (See note 3)

product not available CALL FOR AVAILABILITY

$0.00
86
11880
5/16X 1-3/4 SPIROL PIN
$3.54
87
1263
3/8 NC x 1 Hex head cap screw

product not available CALL FOR AVAILABILITY

$0.00
88
12400
3/8 NC X 1 SELF TAP SCREW
$12.59
89
838
WASHER, LOCK, 3/8 ZP
$1.44
90
1287
NUT WING 3/8 NC
$1.72
91
3282
3/8 X 1-1/2 CLINCH PIN
$3.74
92
W7276
7/16X 2-1/2 SPIROL PIN
$8.83
93
745
REPL BY 1 6100

product not available CALL FOR AVAILABILITY

$0.01
94
3379
BOLT, HEX 1/2 NC X 1-1/2 GR5 Z
$2.93
95
765
NUT, LOCK, 1/2 NC ZP
$3.40
96
855
WASHER, LOCK, 1/2 ZP
$1.44
97
5607
BOLT, CARRIAGE 5/8 NC X 1-1/2
$2.52
98
12274
BOLT, HEX 5/8 NC X 2-1/4 GR5
$3.54
99
12005
HHCS 5/8 NC X 6 HT
$6.08
100
23638
BOLT, HEX 5/8 NC X 7 GR5
$6.73
101
692
WASHER, FLAT, 5/8 STD ZP
$1.72
102
10635
WASHER, CUP 5/8 X 1-3/4 X 14GA
$2.74
103
1286
WASHER, LOCK, HEAVY ZP
$1.72
104
230
NUT, HEX, 5/8 NC PLATD
$1.72
105
12006
NUT STOP 5/8 NC ELASTIC
$1.90
106
6239
NUT, LOCK, 5/8 NC
$2.31
107
1791
SLEEVE, .625 X 1.00 X .563 HT
$2.52
108
4616
HHCS 3/4 NC X 1-1/2 GR5 ZP
$9.63
109
7210
WSHR 3/4ID 2-3/8OD .072THK CUP

product not available CALL FOR AVAILABILITY

$11.79
110
11204
SHIM 13/16ID .010THICK
$3.80
111
11036
WSHR 3/4X1-1/2X18GA SHIM
$3.23
112
W7828
WASHER, 3/4 X 2-1/2 X 1/4 HT
$11.72
113
W8321
PIN, CLEVIS .75 X 1.84
$36.43
114
W8341
PIN CLV 1 X 2-1/2 HT
$41.46
115
8332
7/8 x 3-11/32 Clevis pin (See note 76)

product not available CALL FOR AVAILABILITY

$25.74
116
1863
WASHER, FLAT, 1 SAE ZP
$2.13
117
3132
NUT, HEX, 1 NC ZP
$7.38
118
3626
NUT HEX 1-14 UNS
$3.31
119
11296
RING SNAP .062 X 1-3/4 ID
$2.05
120
1972
FITTING, GREASE ZERK 1/4-28
$2.93
121
11854
BOLT, HEX 5/8 NC X 2-1/2
$5.06
122
1738
1/2 NC x 5-1/2 Hex head cap screw (See note 46)

product not available CALL FOR AVAILABILITY

$0.00
123
4258
WASHER, 7/8 FLAT
$1.15

24206
Complete Cylinder

product not available CALL FOR AVAILABILITY

$0.00
