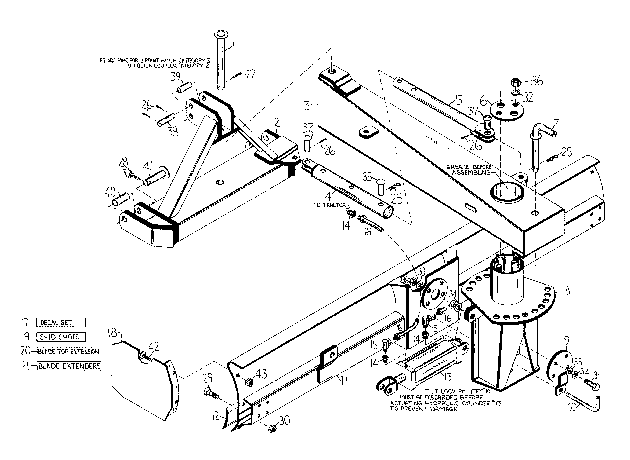

Woods Woods RB750-2 Rear Blade (Woods) Assembly Drawing Assembly

#
Part #
Item
Price
Qty
Add
1
27546
RB750 ETC PIVOT PIN
$83.50
2
9887
A-frame assembly (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
3
9888
Boom assembly

product not available CALL FOR AVAILABILITY

$0.00
4
27555RP
RB750ETC SWNG LINK OUTR
$218.30
5
27552RP
RB750 ETC SWING LINK INR
$169.09
6
27558
Retaining cap

product not available CALL FOR AVAILABILITY

$0.00
7
27544
RB750 ETC LOCKPIN ASY
$231.69
8
9889
Pivot assembly (See note 2)

product not available CALL FOR AVAILABILITY

$0.00
9
27549RP
RB750 ETC RETAINER ASY
$209.12
10
27543
RB750 ETC TILT LOCK PIN
$28.82
11
9890
7' Blade assembly (Model 750) (See note 3)

product not available CALL FOR AVAILABILITY

$0.00
11
9891
8' Blade assembly (Model 850) (See note 4)

product not available CALL FOR AVAILABILITY

$0.00
12
25270
EDGE, CUTTING .50 X 6.0 X 95
$254.00
12
25263
EDGE, CUTTING .50 X 6.0 X 83
$201.10
14
W11893
ADAPTER, 1/4 NPTF 1/2 NPTM
$2.52
15
10290
FITTING, ELBOW 1/4 X X1/4 W/1/
$6.75
16
12422
HOSE, .25 X .25 X 90
$63.71
17
27560
DCL SET CMPL RB750

product not available CALL FOR AVAILABILITY

$98.71
18
22655
WA, RB600 ETC END PLATE
$217.32
25
18270
PIN, SAFETY 3/16 X3-1/4
$1.19
26
923
PIN, 1/4 X 1-3/4 COTTER
$1.44
27
744
3/8 x 2-1/2 Cotter pin (See note 4)

product not available CALL FOR AVAILABILITY

$0.00
28
27542
PIN, KLIK HT 7/16 X 11/32
$6.22
29
25266
BOLT, PLOW 5/8 NC X 2
$3.23
30
6239
NUT, LOCK, 5/8 NC
$2.31
31
14334
BOLT, HEX 3/4 NC X 3 GR5
$4.40
32
2522
WASHER, LOCK 3/4
$0.99
33
1257
WSHR 3/4 FLAT ZP
$2.13
34
11036
WSHR 3/4X1-1/2X18GA SHIM
$3.23
35
26446
RB990 ETC LOCK PIN
$58.95
36
1450
NUT, HEX 3/4 NC
$2.13
37
W8341
PIN CLV 1 X 2-1/2 HT
$41.46
38
26148
PIN CLV 1 X 4-29/32 HT
$39.22
39
14695
SLV 1 X 1-1/4 X 2
$23.30
40
24795
SLV 1-1/8 X 1-7/16X 2-3/4

product not available CALL FOR AVAILABILITY

$65.57
41
27573
RB750 ETC 1-1/8 HITCH PIN
$76.31
42
2615
BOLT, CARRIAGE 1/2 NC X 1-1/4
$4.56
43
11900
NUT, LOCK FLANGE 1/2 NC
$1.90

39140
LNK .25 X 1.5 X 30

product not available CALL FOR AVAILABILITY

$31.94
