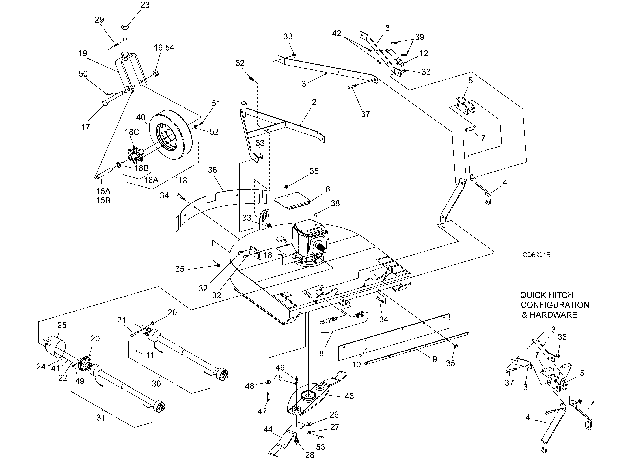

Woods Woods RCC42 Single Spindle Single Spindle Cutter RCC42 Assembly

2

1007290

WA TAILWHEEL

$152.24

3

1007267

Link, offset (See note 1)

product not available CALL FOR AVAILABILITY

$37.84

4

1007268

LINK .37 X 2.5 X 21.6

$57.56

5

19605RP

LNK U .38 X 2.5 X 7.13

$30.60

6

57050RP

LINK BENT .14X 9.00X 7.84

$40.73

7

64814

PIPE, .50 X SCH 40 X 2.88

$6.23

8

33661RP

ASY, PIN CTGY 1 MTG W/NUT-LW H

$14.53

9

1013881

PLATE, DEFLECTOR-RCC42

$53.85

10

1007285

RUBBER DEFLECTOR 40.75

$25.99

11

15345

RETAINER, SNPRNG .05 X 1.38 EX

$2.93

12

1026530

MANUAL TUBE, 2.20 X 1.97 X 11.

$28.92

15A

57182

SLV .656X .997X 5.39

$34.53

15B

1013219

SLV .656 X .985 X 5.24

$15.37

16

19025

NUT, HFN 5/8 NC, LOCK

$3.31

17

1013878

M24 X 2 X 192 SPINDLE BOLT

$39.48

17

23638

BOLT, HEX 5/8 NC X 7 GR5

$6.73

18

1013222

4 X 15 WHEEL ASS

$146.69

18

15373

Tire, 4 x 16 Solid core yoke mount (See note 4)

product not available CALL FOR AVAILABILITY

$0.00

18A

1009091

WHEEL HUB ASSEMBLY

$59.84

18B

1032573

BUSHING, FLNG .990 X 1.394 X .

$5.40

18B

1013880

BUSHING, FLNG .984X1.378X.984

$8.02

18B

1030524

BUSHING, .990 X 1.374 X .99

$5.71

18B

1009090

BSHG FLNG 1.00 X 1.37 X 1.00

$10.67

18C

1013879

Cast iron wheel hub (See note 16)

product not available CALL FOR AVAILABILITY

$0.01

19

1028815RP

WA, CASTER FORK

$141.91

19

15314

YOKE WA 4 X 16 NOTAT

$99.54

20

765

NUT, LOCK, 1/2 NC ZP

$3.40

21

15349

BOLT, HEX 1/2 NC X 3 GR2 ZP

$3.75

22

24801

BOLT, HEX M8-1.25P X 20MM

$1.72

24

35155

WASHER, FLAT 5/16

$2.13

25

1002048

SHIELD, CLUTCH 100, 143 MM BC

$68.56

26

20893

WASHER, SPECIAL GRBX 25 X 44 X

$2.93

27

20892

NUT, CASTLE METRIC M24 X 2

$25.50

28

15331

BLADE PIN 1.5X.38W/NUT

$30.76

29

13853

3/8 X 1-3/4 SPIROL PIN

$9.24

29

40775

PIN, ROLL 10 X 65 MM/ PKG OF 1

$41.28

30

1009509

DRIVE, ASSEMBLY CMPL 40, 26.8

$346.64

31

1020902

DRV ASY CMPL 40, 29.9 X 44.9

product not available CALL FOR AVAILABILITY

$491.11

32

3379

BOLT, HEX 1/2 NC X 1-1/2 GR5 Z

$2.93

33

11900

NUT, LOCK FLANGE 1/2 NC

$1.90

34

839

BOLT, HEX 3/8 NC X 1 GR5 ZP

$1.54

35

14350

NUT, LOCK FLANGE 3/8 NC

$1.72

36

1007286

SHLD BAND RR

$48.35

37

23479

BOLT, HEX 1/2 NC X 5 GR5 ZP

$3.91

38

57076

VENT PLUG, 1/2 BREATHER

$16.78

38

1011780RP

FREE FLOW VENTED PLUG M18X1.5

$25.78

39

24409

BOLT, CARRIAGE 5/16 NC X 1

$1.19

40

1019636

TIRE, NO TAT 4 X 15 WITH RIM

$197.88

41

2472

WASHER, LOCK 5/16

$1.19

42

14139

NUT, LOCK FLANGE 5/16 NC

$3.13

43

1007280RP

WA CROSSBAR 42 CUTTER

$415.73

43

1032591RP

WA CROSSBAR RCC42

$460.86

44

30310KT

BLADE KIT, 30310 STD

$96.86

47

902

BOLT, HEX 5/8 NC X 2 GR5 ZP

$3.31

48

57817

WASHER, 5/8 SAE FLAT HRDN

$0.58

49

3489

BOLT, HEX 1/2 NC X 3 GR5 ZP

$2.74

51

23029

HHCS M12-1.75P X 25MM

$2.13

53

64803

PIN COTTER 3/16

$0.25

54

1032105

NUT SLOTTED M24X2.0P

$36.78

55

1036790

DCL SET SPANISH SAFETY 42

$726.35
