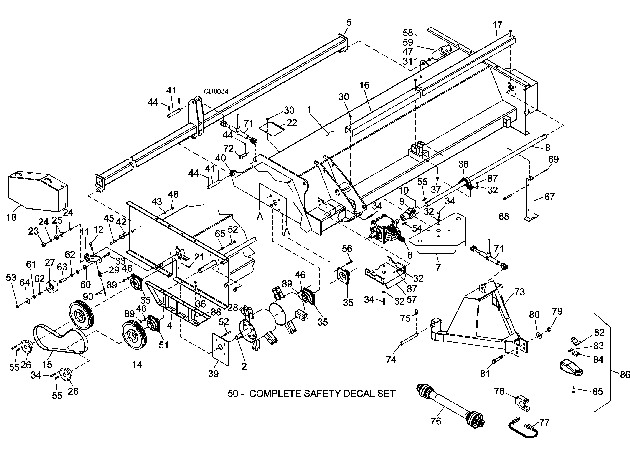

END DRIVE FLAIL SHREDDER FRAME ASSEMBLY

#
Part #
Item
Price
Qty
Add
4
1035859RP
SKID ASSEMBLY
$291.45
5
1036554RP
ROCKSHAFT ASSEMBLY, 12 FT
$2,536.24
5
1036048RP
ROCKSHAFT ASSEMBLY, 20 FT
$2,575.41
5
1036567RP
ROCKSHAFT ASSEMBLY, 18 FT
$2,625.03
5
1036349RP
ROCKSHAFT ASSEMBLY, 15 FT
$2,867.65
6
1037139
GEARBOX, 1:1.375 W/DECAL
$2,641.58
7
1036309RP
GEARBOX SHIELD
$184.19
8
1036503
CROSS SHAFT, 114 IN LONG (20 F
$323.32
8
1036569
DRIVE SHAFT

product not available CALL FOR AVAILABILITY

$562.98
8
1036343
DRIVE SHAFT

product not available CALL FOR AVAILABILITY

$393.88
8
1036553
DRIVE, SHAFT, 1.537 X 66 ENDRV SHREDDER

product not available CALL FOR AVAILABILITY

$326.95
9
1036519
DRIVE, U-JOINT REPAIR KIT 35E
$276.50
10
90016253
3/8 NC x 1/2 Socket Head Set Screw (See note 9)

product not available CALL FOR AVAILABILITY

$0.99
11
1036316RP
IDLER BRACKET, WELDMENT

product not available CALL FOR AVAILABILITY

$77.67
12
1037138
BOLT, CARRIAGE 1/2 NC X 6 GR 5
$2.54
14
1035740
SHEAVE, 3 GROOVE, 13.2
$274.53
15
1035741
BELT, 3HB POWERBAND 95.0
$499.65
16
1036506RP
SHIELD, DRIVE LINE
$86.91
16
1036573RP
SHIELD, DRIVE LINE
$84.44
16
1036552RP
SHIELD, DRIVE LINE
$89.67
17
1036507RP
SHIELD, DRIVE LINE
$116.03
18
1036520RP
BELT SHIELD, RH
$294.88
19
1036521RP
BELT SHIELD, LH
$294.88
21
1266
PIN, COTTER 3/16 X 1-1/2
$1.44
22
57050RP
LINK BENT .14X 9.00X 7.84
$40.73
23
302178
NUT, CASTLE 5/8 NF
$3.75
24
35141
RETAINER, SNPRNG .062 X 1.734
$2.74
25
35193
BEARING, BALL 6203
$22.96
26
50031058
HUB, 1-3/4 TYPE E
$600.69
27
1031392
IDLER PULLEY, FLAT W/BRGS 5.95
$77.15
28
27542
PIN, KLIK HT 7/16 X 11/32
$6.22
29
23904
SPRING, COMPRESSION, 94 .21 X
$48.72
30
14350
NUT, LOCK FLANGE 3/8 NC
$1.72
31
14139
NUT, LOCK FLANGE 5/16 NC
$3.13
32
855
WASHER, LOCK, 1/2 ZP
$1.44
33
W301135
BOLT, CARRIAGE, 5/8 NC X 5 GR5
$4.16
34
3379
BOLT, HEX 1/2 NC X 1-1/2 GR5 Z
$2.93
35
1012170
BEARING, 2-3/16 FLANGE
$191.57
36
1031226
NUT, SPIRALOCK , FLANGE 1/2 N
$2.52
37
12735
BOLT, CARRIAGE 1/2 NC X 1-3/4
$2.52
38
90101272
BEARING, PILLOW BLOCK 1-3/4
$142.75
39
1035782RP
DOUBLER PLATE
$79.26
40
1972
FITTING, GREASE ZERK 1/4-28
$2.93
41
50530219
PIN, HDLS 1.25 X 7.13
$37.23
42
56383
PIN, FLAG 1.25 X 4.52
$65.25
43
565
WASHER, FLAT 3/8
$1.72
44
90023081
PIN, COTTER 3/8 X 2
$2.04
45
20973
BOLT, CARRIAGE 3/8 NC X 1-1/4
$1.72
46
58121
WASHER, LOCK 5/8
$1.14
47
4378
WASHER, FLAT SAE 5/16
$0.78
48
6698
NUT LOCK 3/8 NC ZP
$1.19
50
1036540RP
DCL, KIT, SHREDDER SAFETY
$177.22
51
1035216
BEARING, 1.75 4 BOLT FLANGE
$62.51
52
2855
BOLT, CARRIAGE 5/8 NC X 2
$3.13
53
6239
NUT, LOCK, 5/8 NC
$2.31
54
1036666RP
KEY, 3/8 X 3/8 X 2
$8.36
55
1036667RP
KEY, 3/8 X 3/8 X 2-1/2

product not available CALL FOR AVAILABILITY

$9.55
56
986
BOLT, HEX 5/8 NC X 2-3/4 HT
$3.75
57
1036043RP
MOUNTING PLATE, GEARBOX
$191.63
58
1003828
MANUAL TUBE, 3.50 X 3.23 X 11.
$28.92
59
14562
BOLT, HEX 5/16 NC X 1 GR5
$1.72
60
691RP
LUG 1/4 X 2 X 2
$9.61
61
844
WASHER, SPECIAL 1 X 1-1/4 X 13
$8.02
62
845
SEAL, FELT OIL 1-5/16 X X.990
$10.05
63
377
SLEEVE, 41/64 X 1 X 2-13/16 HT
$55.18
64
843
WASHER, SPECIAL SQUARE 1/2 X 2
$58.09
65
65121
WASHER, FLAT 7/8ID 1-1/4OD 14G
$4.43
67
1036516RP
PARKING STAND
$88.99
68
W100181
PIN, BENT .50 X 4.5 W/CLIP
$4.05
69
90023084
PIN, COTTER 3/8 X 3-1/2
$2.23
71
20020705
Ratchet jack

product not available CALL FOR AVAILABILITY

$227.60
72
46605
PIN, CLEVIS 1.00 X 2.26
$11.38
73
50520412
Pull-type hitch weldment

product not available CALL FOR AVAILABILITY

$0.00
74
20020553RP
ASSY,PIN LOWER 3PT HITCH
$50.95
75
43627
PIN, KLIK 7/16
$2.31
76
1036038
DRIVE, PTO 1-3/4 20 W/CLUTCH E
$1,071.45
76
1036178
DRIVE, CV 1-3/8 OVRRUN P-TYPE
$1,654.43
76
1036179
DRIVE, CV 1-3/4 OVRRUN P-TYPE ED WSLR
$1,777.28
76
1029958
DRIVE, COMPLETE-2500 29.9 X 40
$1,707.71
77
90507112
TOW CHAIN 10,100, 8607187
$109.31
78
50520433
CLEVIS HITCH KIT, SHREDDER
$124.51
79
3132
NUT, HEX, 1 NC ZP
$7.38
80
3689
WASHER, LOCK, 1 STD D
$1.15
81
90001537
BOLT, HEX 1 NC X 6-1/2 GR5 ZP
$12.59
82
50530834
TOP PLATE, PPI 302V
$58.86
83
50530832
CUSHION, STEEL BLOCK .5 X .75 X 1.88

product not available CALL FOR AVAILABILITY

$7.39
84
50530833
V PLATE, PPI 230VR
$31.70
85
90001411
BOLT, HEX 3/4 NC X 3 GR5 ZP

product not available CALL FOR AVAILABILITY

$3.23
86
50530831
HITCH, CAT-3 COMPLETE
$335.44
87
21132
NUT, HEX 1/2 NC ZP
$1.15
88
2615
BOLT, CARRIAGE 1/2 NC X 1-1/4
$4.56
89
230
NUT, HEX, 5/8 NC PLATD
$1.72
90
1028903
NUT, FLANGE 1/2 NC GRADE 8 ZP
$3.40
