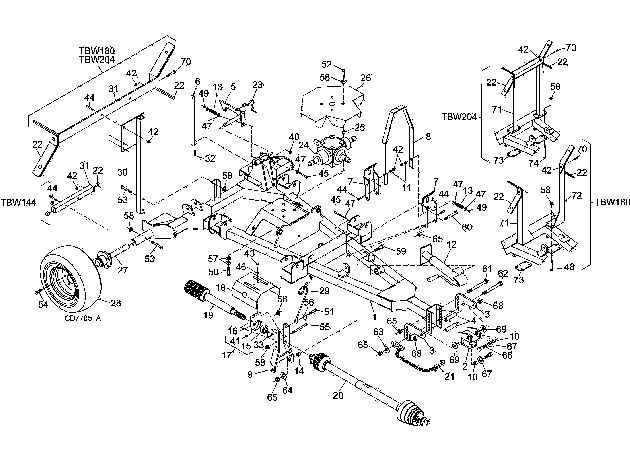

TBW144, TBW180 & TBW204 TRAILER ASSEMBLY

#
Part #
Item
Price
Qty
Add
--
58816
SEAL WING SHAFT
$39.48
--
58817
BRG CUP - CONE SET
$73.19
--
1011780RP
FREE FLOW VENTED PLUG M18X1.5
$25.78
--
58815
SEAL THRU SHAFT
$39.48
--
57462
BEARING, CUP AND CONE 1.378 X
$34.80
--
20890
BEARING, BALL 32 X X72MM
$42.01
--
57463
SEAL, OIL 35 X 72 X 10MM
$13.83
--
57076
VENT PLUG, 1/2 BREATHER
$16.78
--
38475
RIM, 8.00 X 10.00
$84.04
2
1009501RP
HITCH,TBW CATG 1
$180.24
2
1009502RP
HITCH, TBW CATG 2
$200.21
2
1003635
WA RIGID HITCH TBWRD
$256.51
3
1006689RP
LINK ODD .5 X 8.65 X 6.29
$50.34
4
44639RP
TUBE 11GA X 1.0 X 4.12
$23.93
5
40804RP
WA, REAR DECK LOCK
$121.93
6
40880RP
WA, REAR LEVER
$108.05
7
40879RP
LINK, U .25 X 12.44 X 4.30
$59.69
8
40938RP
WA, WING RELEASE LEVER
$103.88
9
19201RP
WA, H-FRAME CV DRIVE
$123.95
10
44641
SLV .78 X 1.00 X .69 HT
$13.98
11
31464
SLV 3/8 X 5/8 X 11/32
$8.02
12
23790
JACK, PARKING SWIVEL 2000LBS
$172.80
13
21957
SPR/CMP0.58 .08 2.4 40
$9.33
14
484
.625 X 1.00 X .438 HT SLV
$3.63
15
3502
BRG-BALL 1.37ID X 2.83OD
$82.22
17
1251RP
BEARING HOLDER, WITH BEARING
$79.83
18
44637RP
SHIELD, FRONT DRIVE
$47.88
20
1045590
DRIVE, CV 2480, 540 RPM
$950.00
21
19407
ASY, SAFETY CHAIN, 10,000 LB
$162.00
22
1038402
GUIDE LINER
$42.47
22
62440
PAD ASM BUMPER
$40.78
23
52204
PIN, LYNCH, CHAIN, AND COTTER
$24.41
24
625961RP
GEARBOX, REPAIR 4-WAY 100 HP O
$732.49
24C
40933C
Gearbox, 4-Way Splitter (Comer)

product not available CALL FOR AVAILABILITY

$0.01
25
62626RP
11GA X 1 X 1 TUBE
$10.04
26
44636RP
SHIELD, TBW GEARBOX W/DECAL
$98.96
27
1001020RP
ASY WHEEL HUB - AXLE
$478.38
28
WP38298G
WHEEL, TIRE 20.5X8.00X10 GRAY
$280.50
29
3443
HYD HOSE HOLDER
$49.16
30
1031776RP
WA, BUMPER TUBE
$139.52
31
1031780RP
TBW144 WING STOP
$86.16
31
1038403RP
WA, REAR STOP, TBW180
$148.68
31
1038184RP
WA, REAR STOP
$156.86
32
11606
3/8 X 1-1/2 SPIROL PIN
$3.91
33
12128
RETAINER, SNPRNG .062 X 72MM I
$2.93
40
12296
FITTING, GREASE 1/4-28 X 15/32
$1.54
41
2985
FITTING, GREASE ZERK 1/4-28 90
$3.31
42
14350
NUT, LOCK FLANGE 3/8 NC
$1.72
42
W70069
NUT, WHIZ, 3/8 NC FLNG /MR
$2.13
43
839
BOLT, HEX 3/8 NC X 1 GR5 ZP
$1.54
44
12169
BOLT, HEX 3/8 NC X 1-1/4 GR5
$1.54
45
31138
3/8 NC x 3-1/2 HHCS GR5 (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
46
838
WASHER, LOCK, 3/8 ZP
$1.44
47
565
WASHER, FLAT 3/8
$1.72
48
3508
BOLT, HEX 1/2 NC X 4-1/2 GR5 Z
$5.40
49
6698
NUT LOCK 3/8 NC ZP
$1.19
50
6100
BOLT, HEX 1/2 NC X 1-1/4 GR5
$2.52
51
24576
HHCS 1/2 NC X 1-3/4 GR5 ZP
$2.52
52
3699
BOLT, HEX 1/2 NC X 2 GR5
$2.31
53
3489
BOLT, HEX 1/2 NC X 3 GR5 ZP
$2.74
54
1258
BOLT, HEX WHEEL, 1/2 -20 NF X
$3.58
55
65575
HHCS 1/2 NC X 5-1/4 GR5
$4.73
56
854
WASHER, FLAT, 1/2 STD ZP
$1.44
57
57811
WSHR 1/2 FLAT EXTRA THK HRDN
$1.07
58
11900
NUT, LOCK FLANGE 1/2 NC
$1.90
59
902
BOLT, HEX 5/8 NC X 2 GR5 ZP
$3.31
60
378
5/8 NC x 5 Hex head cap screw (See note 25)

product not available CALL FOR AVAILABILITY

$0.00
61
26368
5/8 NC x 7 HHCS GR5

product not available CALL FOR AVAILABILITY

$0.00
62
11043
HHCS 5/8 NC X 7-1/2 GR5
$7.22
63
34467RP
WSHR 5/8ID 2OD 3/8THICK ZP
$18.87
64
10635
WASHER, CUP 5/8 X 1-3/4 X 14GA
$2.74
65
6239
NUT, LOCK, 5/8 NC
$2.31
66
13759
BOLT, HEX 3/4 NC X 2-1/4 GR5
$3.91
67
28873
WASHER, SPECIAL 3/4 X 1 1/2 X
$6.42
68
2371
NUT, LOCK, 3/4 NC ZP
$3.23
69
44640
WSHR CUPPED 1.04 X 2.25 X .17
$13.98
70
7701
3/8 NC x 1-1/4 Plow bolt (See note 21)

product not available CALL FOR AVAILABILITY

$0.00
71
1038406RP
WA, FRONT WING STOP, RT
$159.56
71
1038186RP
WA, FRONT STOP
$234.94
72
1038407RP
WA, FRONT WING STOP, LT
$159.56
73
1038405RP
BASE PLATE, LOWER
$14.30
