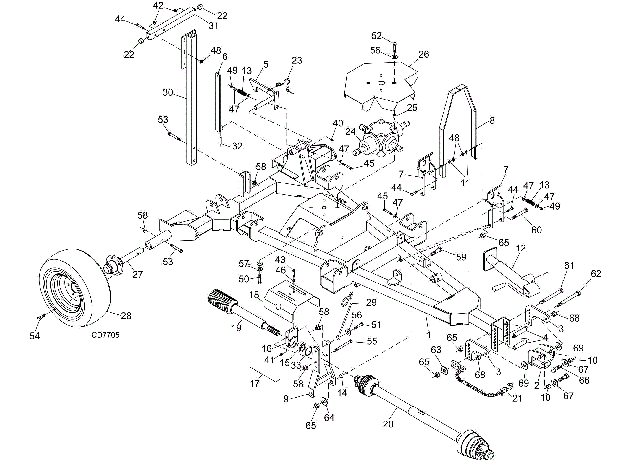

Woods Woods TBW144E Turf Batwing Rotary Cutter TBW144E, TBW180E & TBW204E TRAILER ASSEMBLY

2

1009501RP

HITCH,TBW CATG 1

$185.69

2

1009502RP

HITCH, TBW CATG 2

$206.22

2

1003635

WA RIGID HITCH TBWRD

$254.04

3

1006689RP

LINK ODD .5 X 8.65 X 6.29

$50.34

4

44639RP

TUBE 11GA X 1.0 X 4.12

$24.89

5

40804RP

WA, REAR DECK LOCK

$125.59

6

40880RP

WA, REAR LEVER

$125.14

7

40879RP

LINK, U .25 X 12.44 X 4.30

$73.63

8

40938RP

WA, WING RELEASE LEVER

$122.67

9

19201RP

WA, H-FRAME CV DRIVE

$127.67

10

44641

SLV .78 X 1.00 X .69 HT

$13.98

11

31464

SLV 3/8 X 5/8 X 11/32

$8.02

12

23790

JACK, PARKING SWIVEL 2000LBS

$173.66

13

21957

SPR/CMP0.58 .08 2.4 40

$9.33

14

484

.625 X 1.00 X .438 HT SLV

$3.63

15

3502

BRG-BALL 1.37ID X 2.83OD

$82.64

17

1251RP

BEARING HOLDER, WITH BEARING

$80.23

18

44637RP

SHIELD, FRONT DRIVE

$80.73

21

19407

ASY, SAFETY CHAIN, 10,000 LB

$162.00

22

W71444

BUMPER, RUBBER 1.25 DIA X .75

$21.54

23

52204

PIN, LYNCH, CHAIN, AND COTTER

$28.62

24

625961RP

GEARBOX, REPAIR 4-WAY 100 HP O

$736.15

24C

40933C

Gearbox, 4-Way Splitter (Comer)

product not available CALL FOR AVAILABILITY

$0.01

25

62626RP

11GA X 1 X 1 TUBE

$10.55

26

44636RP

SHIELD, TBW GEARBOX W/DECAL

$138.41

27

1001020RP

ASY WHEEL HUB - AXLE

$480.77

28

WP38298G

WHEEL, TIRE 20.5X8.00X10 GRAY

$280.50

29

3443

HYD HOSE HOLDER

$50.34

30

1031776RP

WA, BUMPER TUBE

$143.70

31

1031780RP

TBW144 WING STOP

$96.97

31

1031781

TBW, WING STOP

$46.98

32

11606

3/8 X 1-1/2 SPIROL PIN

$3.91

33

12128

RETAINER, SNPRNG .062 X 72MM I

$2.93

40

12296

FITTING, GREASE 1/4-28 X 15/32

$1.54

41

2985

FITTING, GREASE ZERK 1/4-28 90

$3.31

42

14139

NUT, LOCK FLANGE 5/16 NC

$3.13

43

839

BOLT, HEX 3/8 NC X 1 GR5 ZP

$1.54

44

12169

BOLT, HEX 3/8 NC X 1-1/4 GR5

$1.54

45

31138

3/8 NC x 3-1/2 HHCS GR5 (See note 1)

product not available CALL FOR AVAILABILITY

$0.00

46

838

WASHER, LOCK, 3/8 ZP

$1.44

47

565

WASHER, FLAT 3/8

$1.72

48

14350

NUT, LOCK FLANGE 3/8 NC

$1.72

49

6698

NUT LOCK 3/8 NC ZP

$1.19

50

6100

BOLT, HEX 1/2 NC X 1-1/4 GR5

$2.52

51

24576

HHCS 1/2 NC X 1-3/4 GR5 ZP

$2.52

52

3699

BOLT, HEX 1/2 NC X 2 GR5

$2.31

53

3489

BOLT, HEX 1/2 NC X 3 GR5 ZP

$2.74

54

1258

BOLT, HEX WHEEL, 1/2 -20 NF X

$4.53

55

65575

HHCS 1/2 NC X 5-1/4 GR5

$4.73

56

854

WASHER, FLAT, 1/2 STD ZP

$1.44

57

57811

WSHR 1/2 FLAT EXTRA THK HRDN

$1.07

58

11900

NUT, LOCK FLANGE 1/2 NC

$1.90

59

902

BOLT, HEX 5/8 NC X 2 GR5 ZP

$3.31

60

378

5/8 NC x 5 Hex head cap screw (See note 25)

product not available CALL FOR AVAILABILITY

$0.00

61

26368

5/8 NC x 7 HHCS GR5

product not available CALL FOR AVAILABILITY

$0.00

62

11043

HHCS 5/8 NC X 7-1/2 GR5

$7.22

63

34467RP

WSHR 5/8ID 2OD 3/8THICK ZP

$18.87

64

10635

WASHER, CUP 5/8 X 1-3/4 X 14GA

$2.74

65

6239

NUT, LOCK, 5/8 NC

$2.31

66

13759

BOLT, HEX 3/4 NC X 2-1/4 GR5

$3.91

67

28873

WASHER, SPECIAL 3/4 X 1 1/2 X

$6.42

68

2371

NUT, LOCK, 3/4 NC ZP

$3.23

69

44640

WSHR CUPPED 1.04 X 2.25 X .17

$13.98



1011780RP

FREE FLOW VENTED PLUG M18X1.5

$25.78



57462

BEARING, CUP AND CONE 1.378 X

$34.80



20890

BEARING, BALL 32 X X72MM

$42.01



58817

BRG CUP - CONE SET

$73.56



58816

SEAL WING SHAFT

$39.48



58815

SEAL THRU SHAFT

$39.48



57463

SEAL, OIL 35 X 72 X 10MM

$13.83



57076

VENT PLUG, 1/2 BREATHER

$16.78



38475

RIM, 8.00 X 10.00

$84.46
